Translators Enhancements (What's New in 2023.1)
Check out the latest enhancements to the translators.
The following support has been added for:
Import
Alias 2022
CATIA V5
- .catpart, .catproduct R6 to V5-6R2021
- .cgr R10 and newer
Creo Parametric 9.0
NX 2007 Series
Pro/E Granite 15.0
Export
- .glb/.gltf v2/0
- Pro/E Granite 15.0
- USDz 1.0
AnyCAD
Alias 2022
CATIA V5
- .catpart, .catproduct R6 to V5-6R2021
- .cgr R10 and newer
PTC Creo 9.0
NX 2007 Series
Import Options

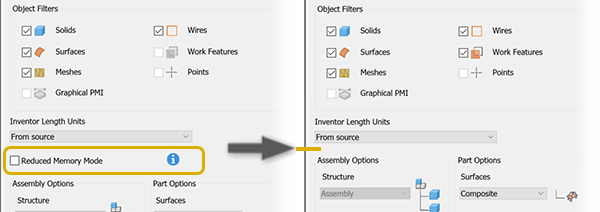

Reduced memory mode is removed from the Import dialog.

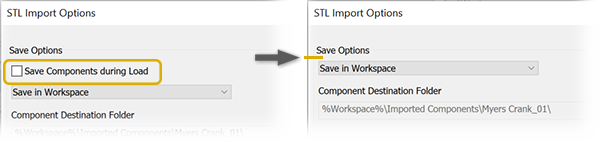

For OBJ and STL import, the option to Save Components during Load is removed.
Product Manufacturing Information (PMI)
PMI, in part documents, can be included when exporting assemblies in JT and STEP formats by selecting the option.

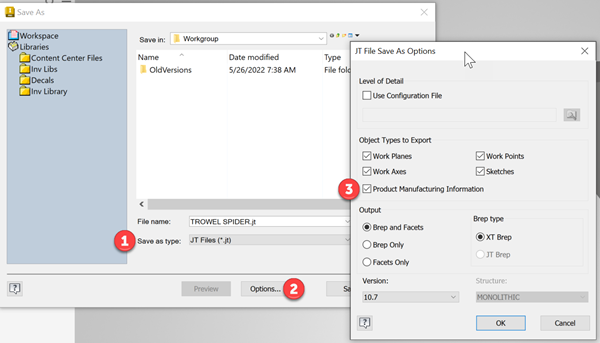

JT format.

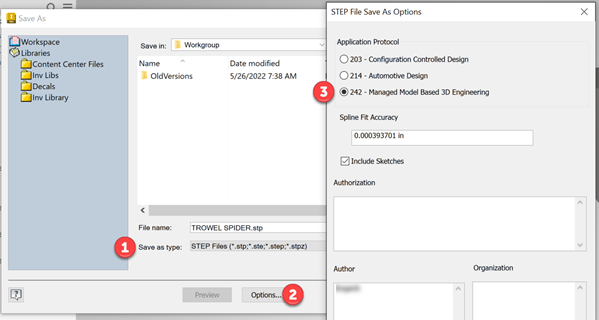

STEP AP 242 format.
