Drawing Style Enhancements (What's New in 2027)

Drawing Style Enhancements for Slot Features

To accompany the new slot feature, the drawing styles now include Slot parameters in Dimension styles, Hole Table styles, and Center Mark styles.

Hole Table enhancements include the following:

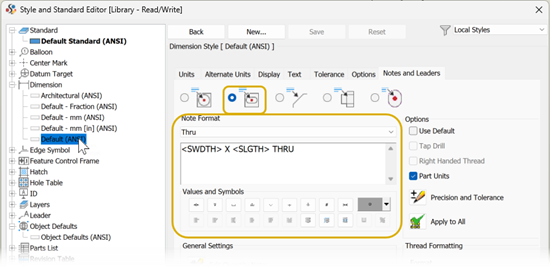

• Slot Note Dimension Style

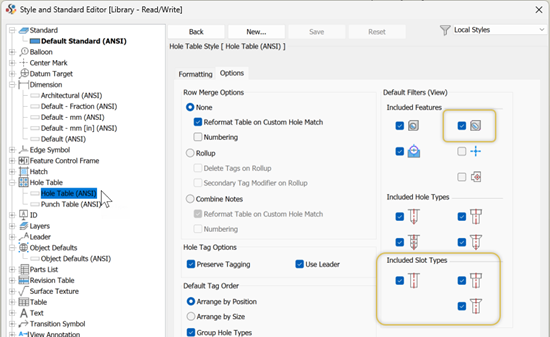

• Hole table style

  The hole table now supports slot features. When enabled in Hole Table Style settings, slots are included in the table with coordinates referencing the slot center and a 'Slot Note' description.



For more information see To Specify the Hole or Slot Note Format

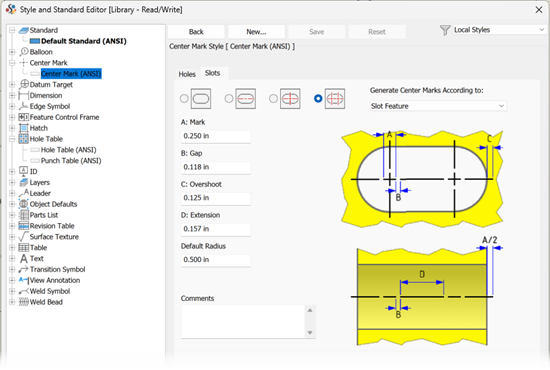

• Center Mark style

For more information see To Specify the Center Mark Style
