Drawing View Enhancements (What's New in 2027)
Learn about improvements made to Drawing Views in this release of Inventor.
Drawing View Enhancements for Point Clouds

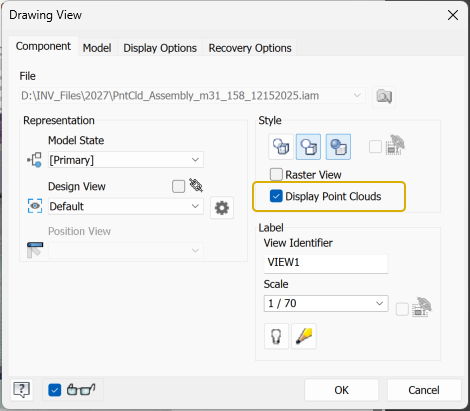

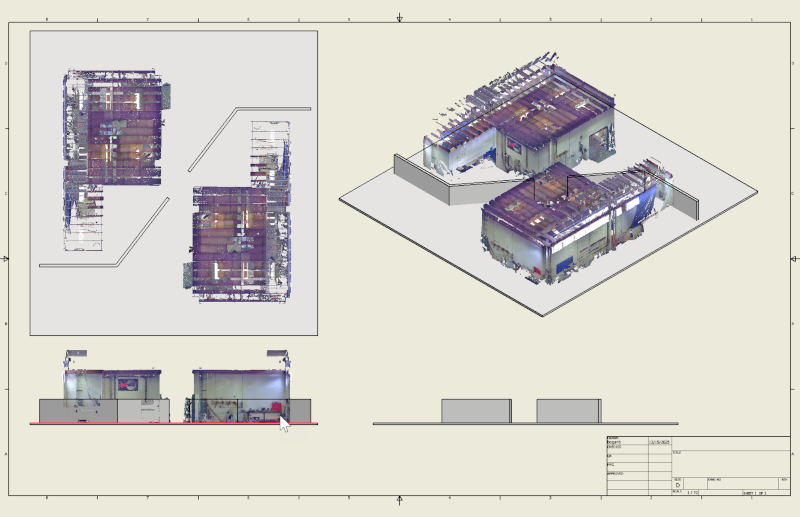

You can display Point Clouds in Shaded drawing views by selecting the Display Point Clouds option in the Drawing View dialog > Style group.
The point cloud must be visible in the model design view being used for the drawing view.
In the drawing, you can control point cloud visibility in specific views by editing the view and deselecting the display option for that view. The point cloud uses a point size of 1 for drawing views.
For more information about drawing views see To Create a Base View and Projected Views
Aligned Broken Views

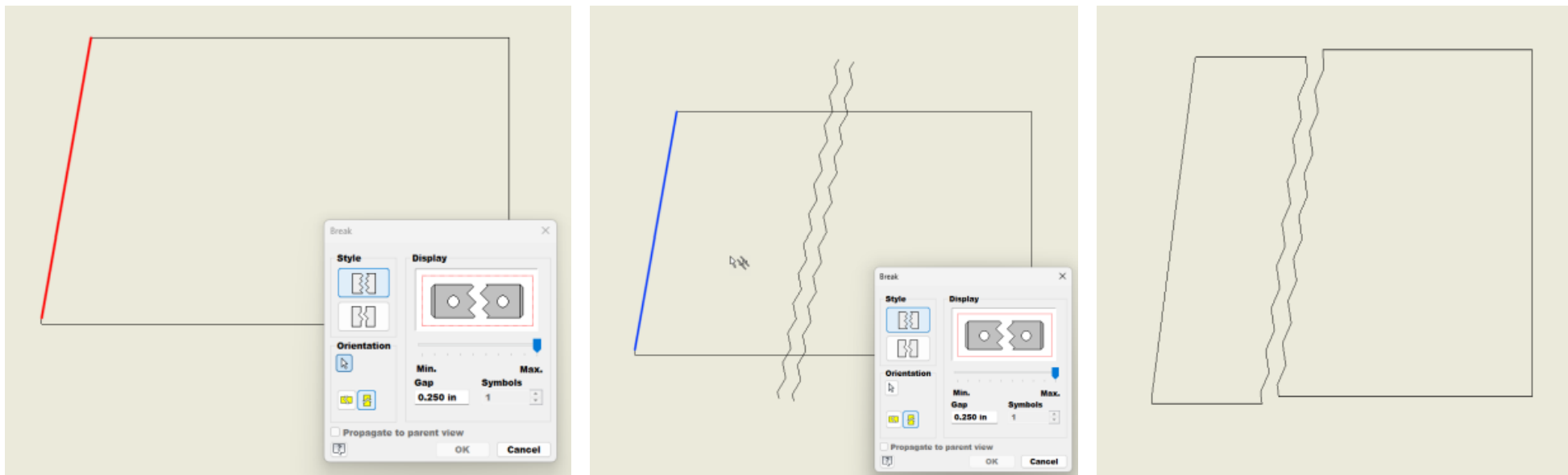

When placing Broken Views, it is now possible to align breaks with view geometry.
The new Edge selector button is added to the Orientation section of the Break View dialog and it allows you to select view geometry to which the break is then aligned.
Only one orientation is allowed per view and it can only be set when placing the first broken view.
For more information see To Work with Break View Operations.
Change Parts List BOM Settings

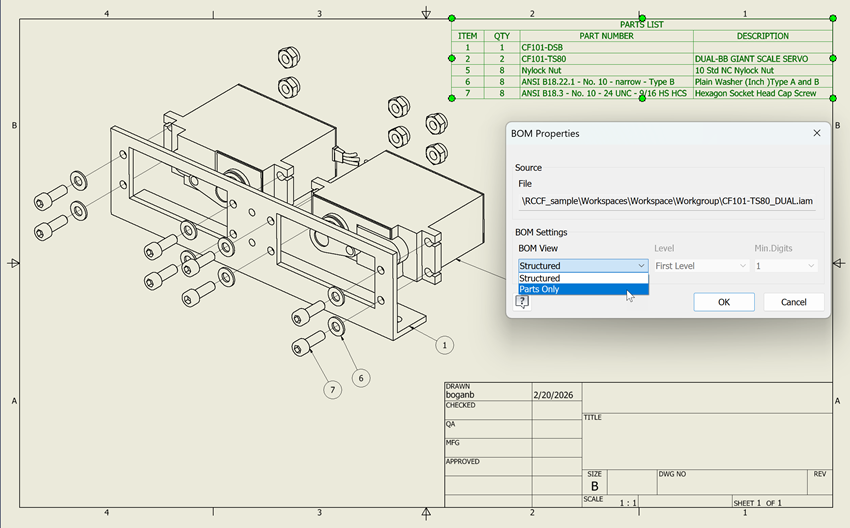

You can now change the BOM settings for an existing parts list instead of recreating the parts list - right-click the parts list and select Change BOM View..., then select the desired setting.
For more information see To Modify Data in a Parts List
