ICMLive functionality is only available if the ICMLive option is enabled on your licence.
This manifest page is used to configure the automatic export of custom graphs (for the purpose of post event analysis) to image files (PNG) format in the ICMLive Operator Client and to test export settings in InfoWorks ICM.
Exported files will be stored in a subfolder within the export location specified in the Target field of the Result CSV export page.
A log file is generated in %ProgramData%/Innovyze/LiveServerData/<database_guid>/task_logs. The information displayed in the log file is useful for diagnostic purposes in case of export failure.

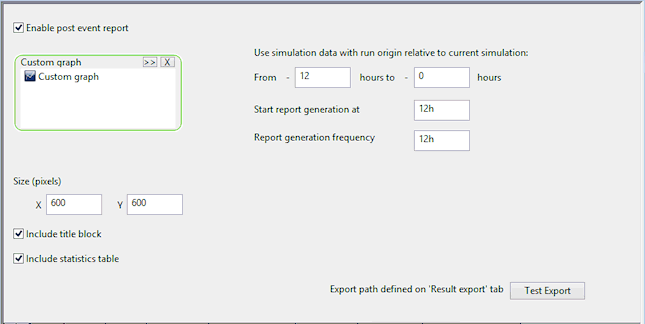

Page description
| Option | Description |
|---|---|
|
Enable post event report |
If checked post event report generation is enabled. |
|
Custom Graph |
Several graphs can be simultaneously exported. These graphs are contained inside Custom Graph objects. Note: Only Custom Graphs using the
Object per page report style can be used for post event report generation.
Include one or more Custom Graphs using one of the following methods: Tip: Any
Results Analysis objects included in custom graph templates will be ignored at export time.
|
|
Size (pixels) |
The width (X) and height (Y) of the exported graphs. |
|
Include title block |
If checked, graph headers are exported. The header text at the top of a graph displays information about the data being graphed. See Custom Graphs for more information. |
|
Include statistics table |
If checked, statistics tables are exported. The statistics table shows statistics, including minimum and maximum values. See Custom Graphs for more information. |
| Use simulation data with run origin relative to current simulation |
Times relative to run origin of current simulation. Results from simulations with run origin within the time window specified here will be included on the exported graphs. Only results from earlier simulations can be exported. |
| Start report generation at | Time at which the Innovyze Live Server is to start performing event report generation. |
| Report generation frequency | Frequency at which an event report is initiated by the Innovyze Live Server. |
|
Test Export |
Enabled when a path has been typed in or selected in the Target box of the Result CSV export page. Exports the specified graphs. The purpose of this functionality is to check that the obtained image files are the ones users want to be automatically exported on a deployed system (i.e. when using ICMLive Operator Client). |
