ICMLive functionality is only available if the ICMLive option is enabled on your licence.
This manifest page determines the automatic export of graphs to image files (PNG format) in the ICMLive Operator Client and to test the export settings in InfoWorks ICM.

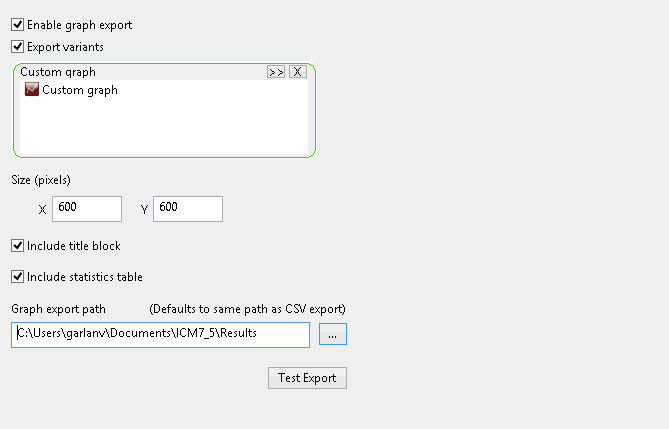

Page description
| Option | Description |
|---|---|
|
Enable graph export |
If checked, enables the export of result graphs for the baseline simulation. |
|
Export variants |
If checked, the graph results for variant runs are exported. |
|
Custom graph |
Several graphs can be simultaneously exported. These graphs are contained inside Custom Graph objects. Note: Only Custom Graphs using the
Simulation per page or
Object per page report style can be used for graph export.
Tip: Any
Results Analysis objects added to custom graph templates will be ignored at export time.
|
|
Size (pixels) |
The width (X) and height (Y) of the exported graphs. |
|
Include title block |
If checked, graph headers are exported. The header text at the top of a graph displays information about the data being graphed. See Custom Graphs for more information. |
|
Include statistics table |
If checked, statistics tables are exported. The statistics table shows statistics, including minimum and maximum values. See Custom Graphs for more information. |
| Graph export path | The path of the directory to which the result graphs are to be exported. This can be typed-in or browsed for using
 . If no folder is specified, the graphs will be exported to the same folder specified in the Target field in the
Results CSV export tab.
|
|
Test Export |
Enabled when a path is specified in Graph export path field. Export the graphs specified for the currently selected simulation. Note: The test export functionality only applies to the baseline simulation selected in the
Setup page, not to variant runs, even if the export of variant run maps has been enabled.
The purpose of this functionality is to check that the obtained files are the ones users want to be automatically exported on a deployed system (i.e. when using ICMLive Operator Client). Note: An error message is displayed when testing the export of maps if no supported map control is selected in the
Options dialog.
|
Export occurs automatically at the end of a simulation. The exported files will be stored in a subfolder within the export location either specified in the Graph export path field in this tab or Target field of the Results CSV export page (default). The subfolder will have the same name as the ICMLive Operator Client run it relates to.
A log file is automatically generated in the same location. The information displayed in this file is useful for diagnostic purposes in case of export failure.
