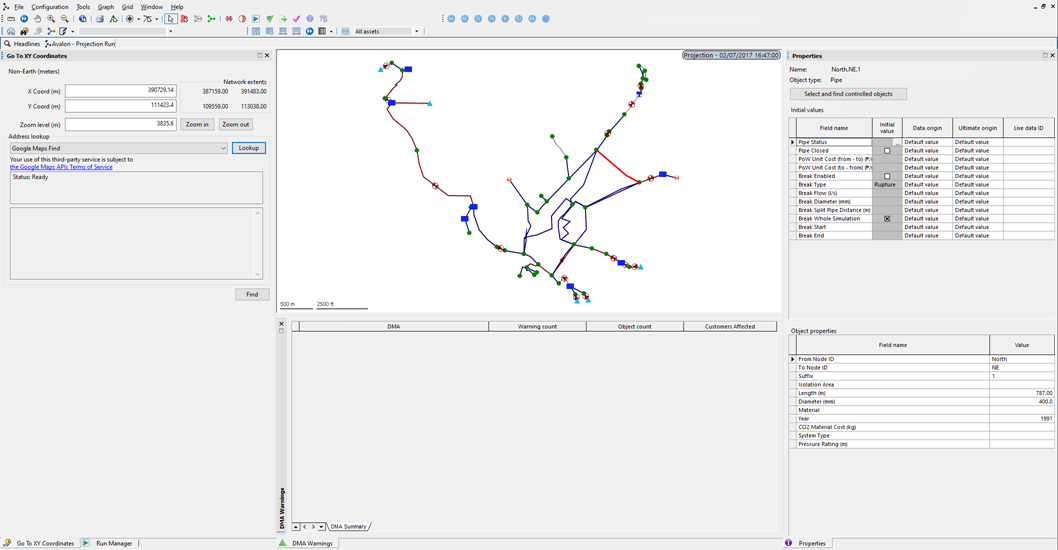

The Baseline page in Administrator mode displays a detailed map of the network belonging to an individual baseline. All network objects are displayed in the map view.
The baseline page is opened by:
- clicking the polygon in the Headline page associated with the baseline
- right clicking the Schedule Window or the Messages Window in the Headlines page and selecting Go to Baseline from the context menu.
Map view
The Map view displays a detailed map of the network belonging to an individual baseline. All network objects are displayed in the map view.
- Click an object in the map view using the
tool to select the object. Hold down the
Ctrl key to select multiple objects.
- Click an object using the
tool to display the property sheet for an object.
- Right click the map to display a context menu containing options to control the map display.
See the Map view section for further details on using the map view.
There are a number of windows displayed in the Baseline Page. Please refer to the Tour of the Workspace - Administrator for further details and links related to these windows.
