The Baseline page in Operator mode displays a detailed network for a baseline.
The baseline page is opened by doing one of the following:
- clicking the polygon of the Headlines page associated with the baseline
- right-clicking the Schedule window in the Headline page and selecting Go to Baseline from the context menu.
The Map view displays a detailed map of the network belonging to an individual baseline. All network objects are displayed in the map view.
- Click an object in the map view using the
tool to select the object. Hold down the
Ctrl key to select multiple objects.
- Click an object using the
tool to display the property sheet for an object.
- Right click the map to display a context menu containing options to control the map display.

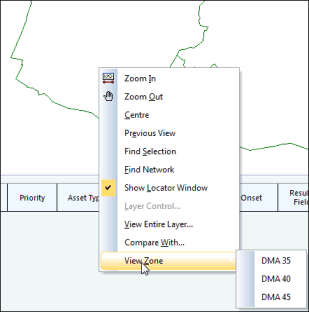

- Additionally the view Zone context menu option of the Map view is available if zones have been defined for the baseline.This option lists all the zones present in the baseline. Select a zone from the list to zoom the Map view to that zone.
See the Map view section for further details on using the map view.
There are a number of windows displayed in the Baseline page. See the Introduction to the workspace topic for further details and links related to these windows.
