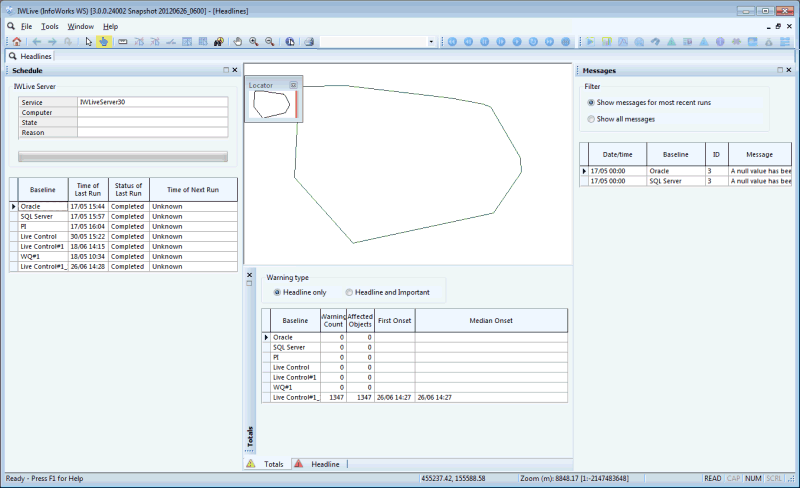

The Headlines page in the Operator displays an overview map of all saved and enabled baselines.
The Map view displays a polygon for each baseline either generated from the network extents or user-defined. Each polygon is coloured according to the warning theme selected in the GeoPlan Properties & Themes in the Administrator mode. Background GIS Layers displayed on the Map view are specified by selection of a layer list in GeoPlan Properties & Themes.
- Click an area in the map view using the
tool to select the object. Hold down the
Ctrl key to select multiple areas.
- Click an area using the
tool to display the property sheet for an object.
- Click an area using the
tool to display the Baseline view for the baseline associated with the polygon. If more than one baseline is associated with the polygon, a Multiple Selection dialog will be displayed listing all of the associated baselines; select the baseline to be displayed and click the
OK button.
- Right click the map to display a context menu containing options to control the map display.
See the Map view section for further details on using the map view.
There are a number of windows displayed in the Headlines page. Please refer to the Tour of the Workspace - Operator for further details and links related to these windows.
