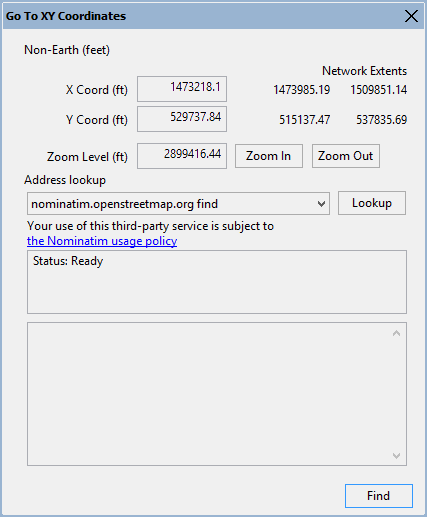

This window allows you to centre the GeoPlan window on a specified point, and zoom in or out on that point if required.
The window is displayed when you click the
Find XY button
on the
Operations Toolbar.
| Field | Description |
|---|---|
|
Projection |
Read only field telling you the current map projection for the GeoPlan |
|
X Coordinate |
Chosen X Coordinate. The default is the centre of the current view. |
|
Y Coordinate |
Chosen Y Coordinate. The default is the centre of the current view. |
|
Zoom Level |
The selected zoom level. The default is the current zoom level. |
|
Network Extents |
The maximum and minimum X and Y extents of the network. For your information. |
|
Zoom In and Zoom Out buttons |
Use these buttons to adjust the zoom level. Each click doubles or halves the zoom level. |
| Address lookup |
Lets you look up an address based on the current XY coordinates. Choose the geocoding service from the drop-down list, then click Lookup. The status of the search is reported in the upper box. If there are any search results, they are listed in the lower box. |
| Find | Click to zoom to the XY coordinates or address. |
