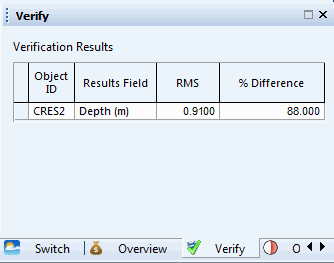

The Verify window displays a grid of verification results. If the simulation has not been verified, the grid will be empty. Click the Verify button on the Run Manager to manually verify the simulation.
Results of the comparison of simulation results against live data is displayed for all objects which have links set up between model object results data fields and live data in the Baseline Object in the Administrator.
To display the window:
- Click the Verify tab on the right hand side of the Baseline Page, or
- Select Verify from the Window menu, or
- Click the
Verify button (
) of the
Window toolbar.
Verification Results Grid
|
Object ID / Element ID |
Object identifier |
|
Results Field |
Simulation results field compared against live data (as linked in the Verification Page of the Baseline Object). |
|
RMS |
Root Mean Square error calculated as:
Where: S(t) = simulated data value at timestep t L(t) - live data value at timestep t n = number of timesteps during simulation |
| % Difference |
Percentage difference between model and live values calculated as:
Where: S(t) = simulated data value at timestep t L(t) = live data value at timestep t |
To zoom to and highlight an object on the Map view, right click in the object row on the Verification Results grid and select Select and find on map from the context menu. Please note that sorting options are also available via the context menu.
