The Zones window is used to configure a theme and layer to be displayed when viewing zones.
Zones are polygons that can be used to divide networks into smaller more manageable areas, usually based on hydraulic boundaries.
A zone is created in InfoWorks WS Pro by associating a polygon with one of the listed area codes.
Grid fields present in this dialog are editable for checked out baselines and disabled baselines that have been checked-in.
Set up zone display options in IWLive Pro Operator Client by selecting a layer list and /or a warning theme in the Layer List box and the Theme box respectively.

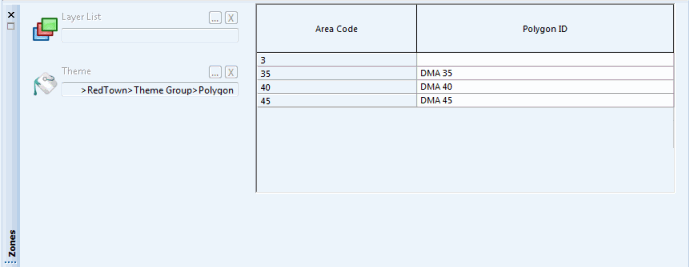

Assign a polygon id to the different area codes. The Area Code column is automatically populated with a list of unique area codes from all the area codes used for nodes and pipes within the network. The Polygon ID column is a dropdown list containing all the polygons present in the network.
The view zone grid context menu zooms the Map view to the zone selected in the grid.
