InfoWorks WS Pro About box
The InfoWorks WS Pro About box displays useful information about your current InfoWorks WS Pro installation, as well as Privacy and Autodesk Trademarks information.
The About box is displayed by selecting About InfoWorks WS Pro from the Help menu. The contents of the Additional Information area can be copied to the clipboard.

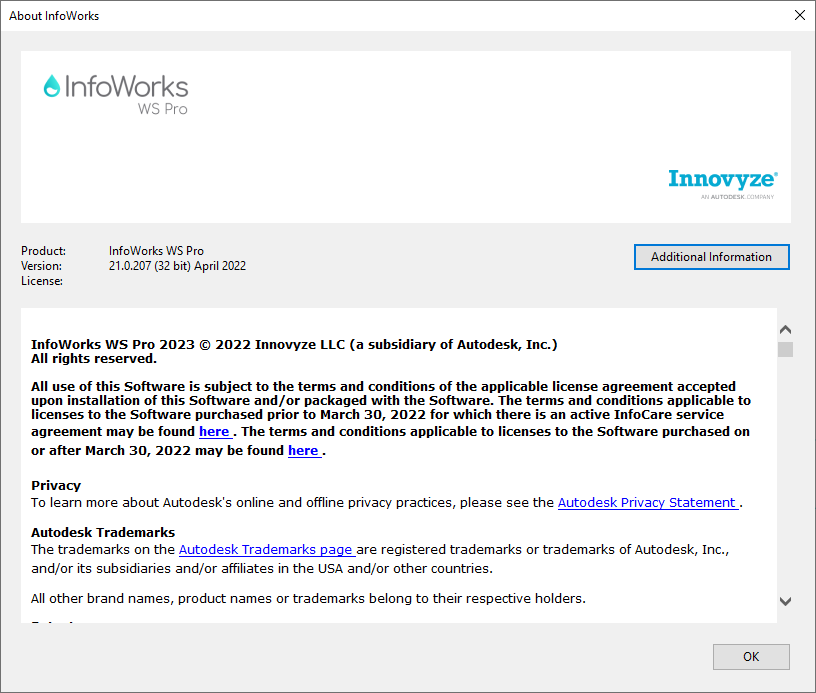

An example of the About InfoWorks box when using a license supplied by Innovyze:

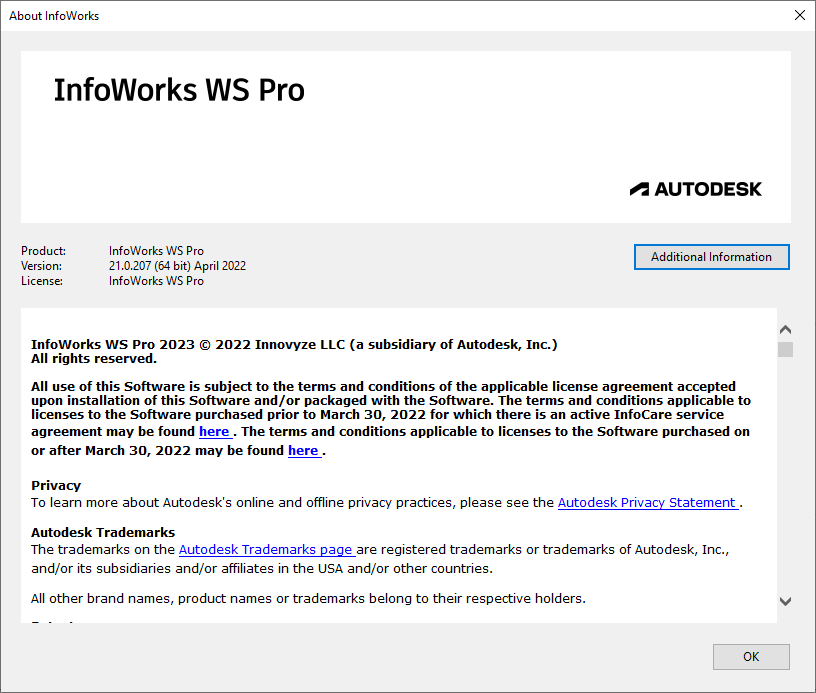

An example of the About InfoWorks box when using a license supplied by Autodesk:

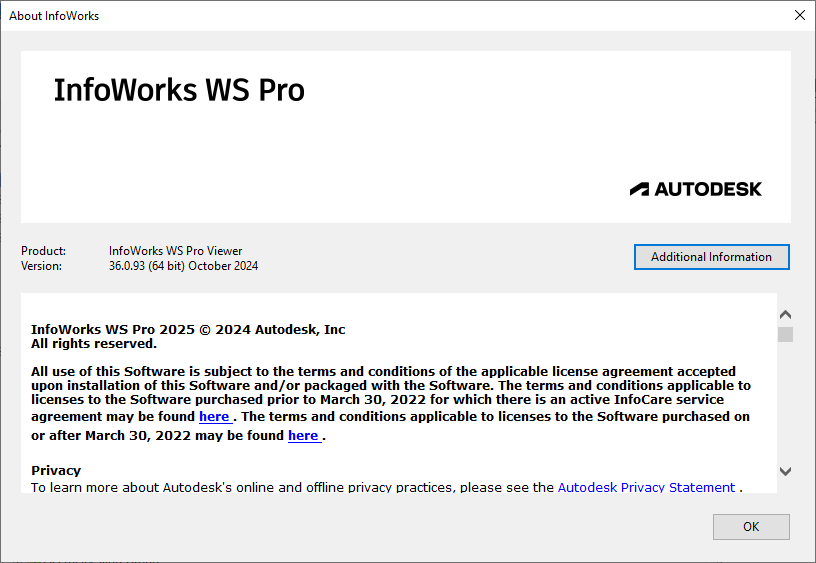

An example of the About InfoWorks box when using Autodesk InfoWorks WS Pro Viewer.
Additional Information
Clicking the Additional Information button displays the following information:
|
Product |
Name of the installed product |
|
Version |
Version and build number of the installed software |
|
License number |
Read from the dongle or license |
| License serial number | Read from the dongle or license |
|
License name |
Read from the dongle or license |
|
License settings |
Read from the dongle or license |
|
Expiry date |
Read from the dongle or license |
|
Interface size |
Read from the dongle or license |
|
Engine |
Engine size licensed. Read from the dongle or license |
|
Options |
Options licensed. Read from the dongle or license |
|
Operating system |
Current Operating System |
|
Internet explorer |
Currently installed version of Internet Explorer. Internet Explorer version 4.01 or greater is required for viewing on-line help. |
|
Physical memory |
Amount of physical memory in the computer |
|
User name |
User name of the user logged on to the computer |
|
Database |
Name of the current on-premise and cloud database |
|
Available disk space |
Space available on the drive containing the database. |
|
Remote results root |
Location of the remote results root directory. Only displayed if the Remote Roots are not below the database. |
|
Remote files root |
Location of the remote file root directory. Only displayed if the Remote Roots are not below the database. |
| Workflow root | ~ |
| Workflow upload area | ~ |
|
User rights enabled for this database |
Tells you if user permissions are turned on or off |
|
Current user is database owner |
Are you an owner of the current database? Only if user permissions are enabled. |
|
Database owners |
Lists all the owners of the current database. Only if user permissions are enabled. |
|
Local root |
Location of the current working folder |
|
Database identifier |
Internal ID of the database |
|
Available disk space |
Space available on the drive containing the working folder |
|
Current GIS |
The current map control |
|
Pathname |
Path of the InfoWorks WS Pro executable file |
|
Default printer |
Printer details |
