This view allows live data feeds to be combined into composite feeds. A number of primary feeds are combined by addition and subtraction, by using a multiplier factor. Interpolation is used if time steps do not coincide.

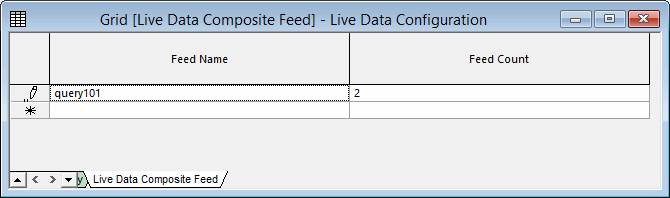

The view is opened by double-clicking a live data configuration object in the Model Group window, then clicking the Live Data Composite Feed tab.
| Item
|
Description
|
|---|
| Left-most column
|
If clicked, selects the whole row.
A forward triangle indicates the current row.
An asterisk indicates where a new object can be created by entering its details (in this case, by entering a feed name).
|
| Fields
|
| Feed Name
|
User name for the composite feed.
|
|
Feed Count
|
Read-only
Corresponds to the number of live data feeds used in the composite feed (feeds given a factor that is not 0).
|
| Feeds
|
Opens the Composite Feeds dialog, which is used to combine feeds into composite feeds. The dialog can also be used to test / check the results of the query.
|
|
| Main context menu options
|
| Copy
|
Copies the value(s) of the selected cell(s) to the clipboard. Several cells can be selected in the same row.
|
| Feeds
|
Opens the Composite Feeds dialog, which is used to combine feeds into composite feeds. The dialog can also be used to test / check the results of the query.
|
| Graph selected live data points
|
Displays the
Live Data Graph dialog.
|
| Properties
|
Displays the Live Data Composite Feed
Object Properties window showing the properties for a single live data.
|
|
