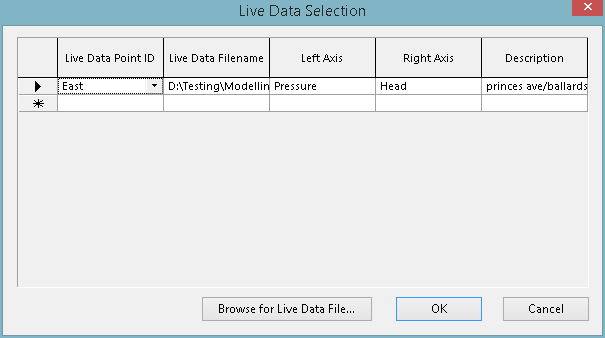

Live Data Selection dialog

This dialog is used to select live data to be graphed in addition to results traces when graphing selected objects.

The dialog is displayed by clicking the Live Data button on the Graph Selection dialog.

Field

Description

Grid

Live Data Point ID	A drop-down list of live data points (coming from Live Data Point view, Live Data Feed view, Live Data Composite Feed view, or files and related to telemetry feeds) will be available if there is a current live data configuration. If there is no live data configuration open, use the Browse for Live Data File button to search for a file.
Live Data Filename	Applies only to live data points coming from files. Full path to the live data file. This field will be automatically populated once a live data point ID has been selected, or a file has been selected using Browse for Live Data File. Tip: This field is empty for live data points related to live data feeds.
Left Axis	Parameter to be plotted on the left axis of the graph.
Right Axis	Parameter to be plotted on the right axis of the graph.
Description	Name for the trace to be graphed.

Browse for Live Data File

Opens the Windows Open dialog to search for a file.

This option allows live data files that are not listed in the live data configuration to be selected for graphing.
