Intermediate points of a section are the points where pipes meet the structure of a manhole.
- Computation table — WW_INTERMEDIATE_POINT
- Feature type — Attribute
| Name | Data Type | Description |
|---|---|---|
|
BOTTOM_ELEVATION |
Number |
The elevation of the bottom part of the item relative to the section, measured in meters. |
|
DATE_CREATION |
Date |
The date when the item was created. |
|
NAME_NUMBER |
Varchar2 |
The name or number of this item. |
|
NARRATIVE |
Varchar2 |
A description or other unique information concerning the subject item. |
|
USER_FLAG |
Varchar2 |
An operator defined work area. This attribute can be used by the operator for user defined system processes. It does not effect the subject item's data integrity and should not be used to store the subject item's data. |
For more information, see Network Point Creation.
Intermediate points can be created automatically in the Section Creation workflow.

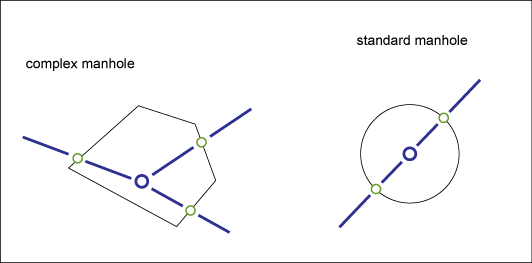

For complex manholes, the intermediate point is the intersection between the section and the polygon detail. For standard manholes the intermediate point is calculated from the diameter (stored in the WW_MANHOLE_MODEL.diameter1).
For more information, see Section Creation and Waste Water Elevation, Slope, and Height.
