Use the intersection function to calculate the intersection of two elements (straight lines or circular arcs) or to connect two elements by a tangent or circle (tangential).

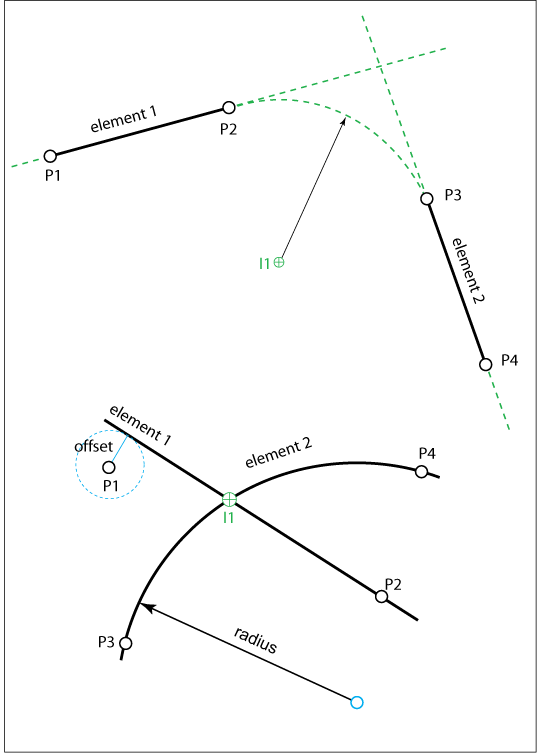

Intersections between lines and arcs
The intersection elements can be specified in various ways, for example:
- Identify an element in the drawing by a mouse click.
- Identify an element by two points

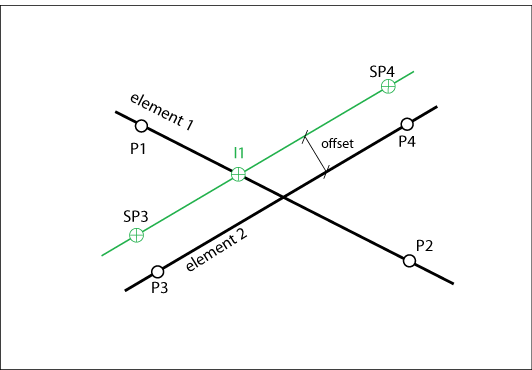

- Identify an element and shift it by an offset value.
- Specify an element by point and orientation.
Intersection Elements
