Create Collisions using Compound Objects

The Compound collision shape type lets you treat a group of objects as a single rigid body. When you select Compound, every mesh in the hierarchy under selected transform are considered sub-collision shapes of a compound.

Note: The Refit command does not affect Compound collision shapes.

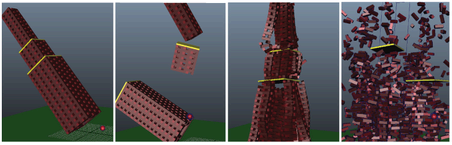

Compound Examples: A tower made of 1000 bricks in a Rigid Body solve. The first tower is a compound object, while the second has each of its three tiers set as compound objects. The last two images show the individual brick set as Hull and Cube-type objects.

Any collision shape attributes, other than Type, are not be used at this time. Dynamic & kinematic bodies: the sub-shapes are a type called Hull collision shape type.

Static bodies: the sub shapes are Mesh collision shape type.

To create a compound object:

1. Gather all the objects you want to associate in a group (Edit >Group).
2. With the group selected you center its Pivot (Modify > Center Pivot).
3. Then, with the group still selected, create a rigid body using the Compound collision shape type. All the objects in the group act as one.
