Emit nParticles

Use emitters to generate moving or stationary particles in your simulations. You can use emitters to create smoke, fire, fireworks, rain, and similar objects.

You can set the emitter options to control the initial position, direction, quantity, and speed of the emitted particles. See Create Emitter Options. Before creating an emitter, select an nParticle type by selecting nParticles > Create Options from the FX menu set. Creating any type of emitter adds three objects to the simulation: an emitter, nParticle object, and a Nucleus solver node. The nParticle object is automatically connected to the emitter.

Note:

You cannot add an emitter to an object if the emitter already has some other technique controlling its translate attributes. After you add an emitter to an object, you cannot control the emitter’s translate attributes with another technique such as an expression.

Emit nParticle from a position

You can create a point emitter (directional and omni) to emit particles from any position in your scene.

Make sure no objects are selected.
Select nParticles > Create Emitter > .
In the Emitter Options window, set the desired particle emission settings and click Create.
A locator indicates the position of the emitter. You can select the emitter object and position it to emit particles anywhere in the scene.

Emit nParticles from the surface of an object

You can emit particle from the surface of a selected polygon or NURBS object.

Select the polygonal or NURBS objects.
Select nParticles > Emit From Object > .
Under the Basic Emitter Attributes, select an Emitter type:
- Surface emits particles from randomly distributed positions on or near a NURBS or polygonal surface.
- Omni or Directional emits particle from all the vertices or CVs of selected object.
Set any other desired particle emission settings and click Create.
For details on emitting from entire surfaces evenly, see Emit nParticles evenly from NURBS surfaces.

Emit nParticles from selected vertices, CVs, or edit points

Select the polygon or NURBS object.
Click (the Select by Component Type icon).
Select the components you want to emit particles.
Select nParticles > Emit From Object > .
Under the Basic Emitter Attributes,select Omni or Directional from the Emitter type list.
Set any other desired particle emission settings and click Create.
Adding an emitter to components creates a set of components named for the emitter. You can change the components that emit by editing the set membership. Note that you cannot emit from components of an object in a referenced scene.

Tip: The MEL emit command lets you add particles to selected positions of an existing particle object without creating an emitter. You can set the values of any per particle attributes for the created particles. This lets you create effects similar to emission but with greater control.
For example, you can make emitted particles use the attribute values of the emitting particles. You can also use the emit command in an expression to make particles emit at the point where particles die.

For detailed examples of the emitcommand, see the online MEL Command Reference.

Emit nParticles from a volume shape

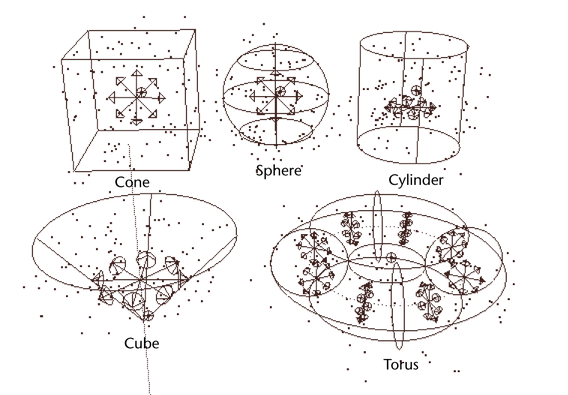

Volume emitters emit nParticles from a closed volume. You can choose from cube, sphere, cylinder, cone, and torus.

Select nParticles > Create Emitter > .
Under Basic Emitter Attributes, set the Emitter type to Volume.
Under Volume Emitter Attributes, click Volume shape and select a shape from the menu.
Set the Volume Emitter Attributes as desired and click Create.
The implicit shape of the volume emitter is displayed on the screen. You can move, rotate, scale, or shear the emitter.

Note: You can’t deform the volume or use an arbitrary volume.

To hide the shape of the volume emitter

Select the emitter and selection Display > Hide > Hide Selection.

Emit nParticles from points on a curve

Select the curve.
Select nParticles > Emit From Object > .
Under Basic Emitter Attributes, set the Emitter type to Curve.
Set any other desired particle emission settings and click Create.

Hide the emitter object locator

In the workspace, select the emitter icon.
Sometimes it’s easier to select the emitter in the Outliner. If you are emitting from an object rather than a position, the emitter is indented under the object’s name in the Outliner.
Select Display > Hide > Hide Selection.
To display the icon again, select Display > Show > Show Last Hidden.
