Use the following options to set what happens when you select Curves > Extend > Extend Curve.
- Extend Method
-
Distance lets you enter a value for the length of the Extension Type.
Point extends to a world space position you specify in Point To Extend To.
- Extension Type
-
Linear extends the curve in a straight line:
Circular extends the curve as an arc:
Extrapolate maintains the tangent of the selected curve.

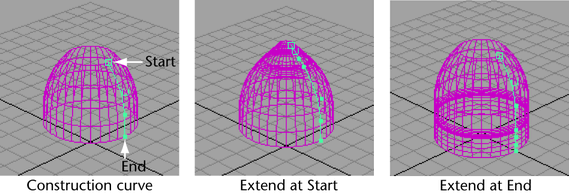

- Extend Curve At
-
Start extends the curve from its start point.
End extends the curve from its end point.
Both extends the curve at both ends.

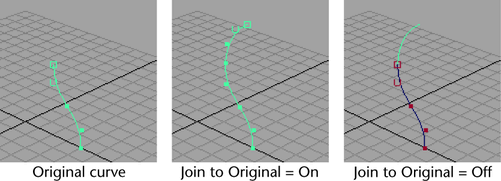

- Join to Original
-
Attaches the curve extension to the original curve. If off, the input curve and the curve extension are independent objects. You can transform the extension separately.
- Remove Multiple Knots
-
Removes the multiple knots that Maya creates when Join To Original is turned on.
- Keep Original
-
Keeps the original curve after the extension is created. If both Keep Original and Join to Original are off, the extension curve replaces the original curve.
- Input Curve
-
Input Curve information is read-only. It gives you access to the input curve you extended. Click the arrow button to select the curve and open that section of the Attribute Editor.
- Input Point
-
This is the same as Point To Extend To in the options window.
