Quickstart Pack tutorial: Enter the study parameters

In this task, you set up and run the pack analysis.

1. Click (Home tab > Molding Process Setup panel > Analysis Wizard).

2. Uncheck Fill as the analysis sequence.

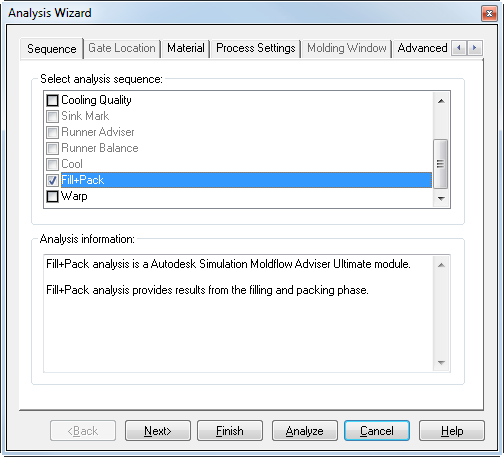

3. Scroll down and check Fill+Pack as the analysis sequence, then click Next.



4. Confirm the material is Generic ABS: Generic Shrinkage Characterised Material, then click Next.

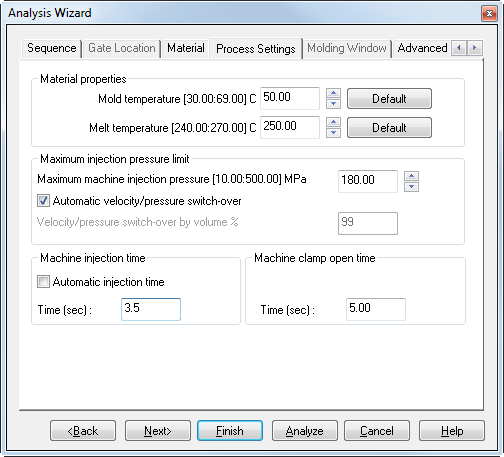

5. Set the fill time to 3.5 seconds, then click Next.

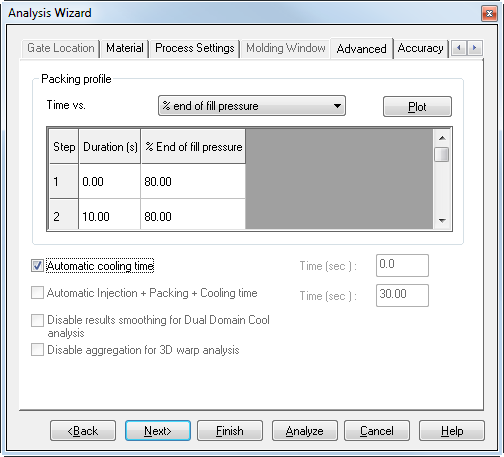

6. Select the Advanced tab and review the Packing profile and ensure Automatic cooling time is selected .



7. Click Analyze

   The analysis takes several minutes to run.
