Quickstart Warp tutorial: Enter the study parameters

In this task, you enter the study settings, then run the analysis.

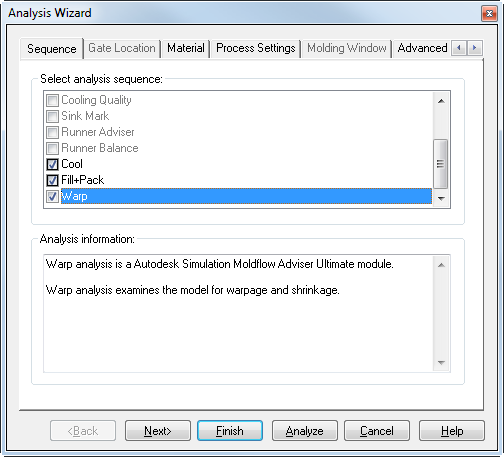

1. Click (Home tab > Molding Process Setup panel > Analysis Wizard).

2. De-select Fill.

3. Select Cool.

4. Select Fill+Pack.

5. Select Warp.

6. Click Next.

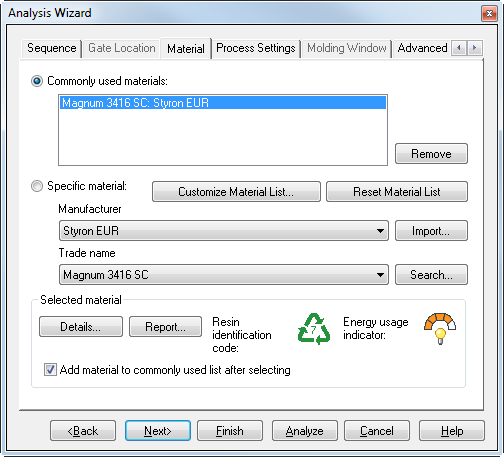

7. Ensure that the material is Trinseo EUR, Magnum 3416 SC, then click Next.

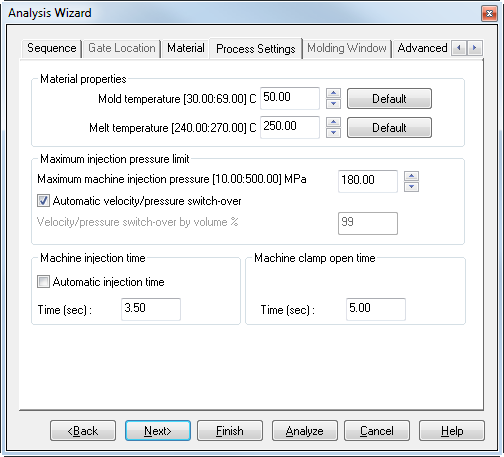

8. Click Next to open the Process Settings tab

9. Ensure that the mold temperature is 50° C

10. Ensure that the Melt temperature is 250° C.

11. Ensure that the injection time is 3.5 seconds.

12. Ensure that the Mold-open time is 5 seconds, then click Next.



13. Click Next to open the Advanced tab

14. Ensure that the Packing profile control is % end of fill pressure.

15. Ensure that the profile is 0 80, 10 80.

16. Enter 25 seconds as the Injection + Packing + Cooling time.



17. Click Analyze.
