Show result minimum and maximum values
Use the Show Min/Max tool to locate the maximum and minimum data points on the geometry, and to label them with the corresponding result values.
Prerequisites
These steps assume you have performed an analysis, and have the result displayed.
To activate Show Min/Max
Click
(Home tab > Examine panel > Show Min/Max).The maximum and minimum data points appear on the geometry with labels showing their corresponding values.
To enable a disabled Show Min/Max command
This information is valid only for those results that ordinarily support the Show Min/Max, such as the Fill Time result, but where the Show Min/Max has been disabled because of 1D beam elements in the runner system.
Place your runner system on a separate layer (see related pages at the bottom of the page to learn how to do this).

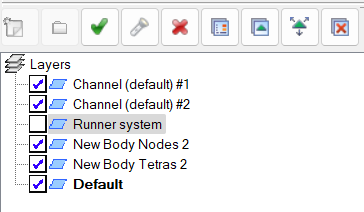

Hide the runner system layer.
The Show Min/Max command is activated and you can examine the data for the rest of the model.
