Add objects to the scene using the Asset Browser

You can select and drag FBX-based files and object and elements from the Asset Browser to the Viewer window so they become available in or associated with your scene. By default, MotionBuilder includes a number of objects and elements, such as characters, shading elements, constraints and more, which you can add to your scene. See MotionBuilder Assets.

  1. In the Resources window, click the Asset Browser tab.
  2. In the Asset Browser, select an asset type to display the available assets. For example, when you select Character, character assets display as icons in the area beside the asset list.
![](../images/2015_new_asset_browser_character_assets.png)

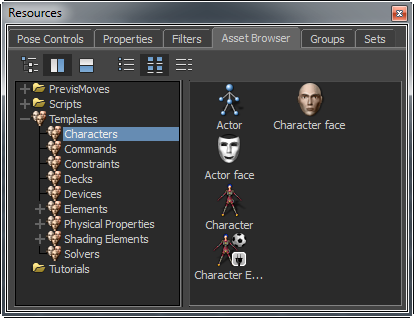

Asset Browser: Character assets
  1. Drag-and-drop an asset's icon onto the Viewer window to add the asset to the scene.
  2. When you add an FBX file to the scene, you can open the file as a new scene or merge it with the current scene. To do this, select from the following options:
<table cellpadding="0" cellspacing="0" class="ruled"><colgroup><col width="20.811607345273185%"> <col width="79.18839265472683%"> </colgroup><tbody><tr class="ruled-heading"><th class="table-heading">Option</th><th class="table-heading">Description</th></tr><tr class="ruled-odd-row"><td class="table-body">All Takes</td><td class="table-body"><a name="WS73099CC142F48755-35A0330E12075ABE904-7A24"></a><p class="table-body">Replaces the current scene with the assets, settings, and takes from the <em class="mild">.fbx</em> file. All assets and models are loaded with their animation. If something is already in your scene, a save dialog box appears for you to save it before the new scene is opened.</p></td></tr><tr class="ruled-even-row"><td class="table-body">No Animation</td><td class="table-body"><a name="WS73099CC142F48755-35A0330E12075ABE904-7A23"></a><p class="table-body">Replaces the current scene with the assets and settings from the <em class="mild">.fbx</em> file. All keyframe animation on assets and models are not loaded. Takes are also not loaded.</p></td></tr><tr class="ruled-odd-row"><td class="table-body">Take 001</td><td class="table-body"><a name="WS73099CC142F48755-35A0330E12075ABE904-7A22"></a><p class="table-body">This part of the context menu lists the takes in the <em class="mild">.fbx</em> file. Selecting the take name replaces the current scene with the keyframe animation on assets and models associated with the selected take.</p></td></tr><tr class="ruled-even-row"><td class="table-body">Options</td><td class="table-body"><a name="WS73099CC142F48755-35A0330E12075ABE904-7A21"></a><p class="table-body">Opens the Open Options dialog box, letting you select the assets, settings, and takes to load. See <span class="char_link"><a href="../MotionBuilder-menus/Main-menus/File-menu/Open-Options-window.html">Open Options window</a></span> or <span class="char_link"><a href="../MotionBuilder-menus/Main-menus/File-menu/Merge-Options-window.html">Merge Options window</a></span>.</p></td></tr></tbody></table>

For information about saving a scene file, see Saving scene elements, animation, settings, and takes.

  • Asset Browser
  • Adding assets to a scene
Parent page: Scene files
