Edit Markups

Added markups cannot be edited with the exception of text, which can be moved and changed as needed.

Move Text

1. Right-click the annotation in the Scene View.
2. Click Move on the context menu.

Edit Text

1. Right-click the annotation in the Scene View, and click Edit on the context menu.
2. Enter a new annotation in the box provided, and click OK.

Delete Text

1. Right-click the text you want to delete.
2. Click Delete Markup on the context menu.

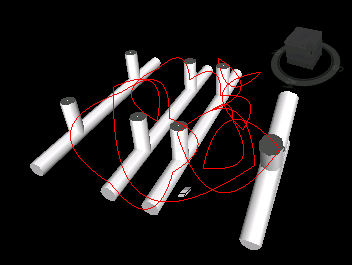

Erase Markups

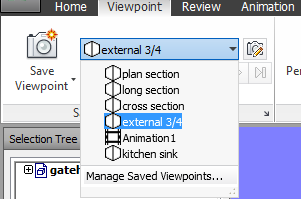

1. Click Viewpoint tab > Save, Load & Playback panel > Saved Viewpoints drop-down, and choose the viewpoint that you want to review.



2. Click Review tab > Markup panel > Draw drop-down, and click Erase .

3. Drag a box over the markup you want to delete, and release the mouse.
