Draw a Cloud

  1. Click Viewpoint tab > Save, Load & Playback panel > Saved Viewpoints drop-down, and choose the viewpoint that you want to review.

  2. Click Review tab > Markup panel > Draw drop-down, and click Cloud.

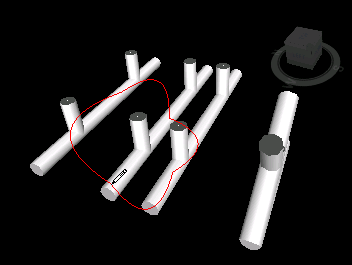

  3. Click in the viewpoint to begin drawing the arcs of the cloud. Each time you click, a new point is added. Clicking clockwise draws regular arcs, clicking counterclockwise, draws inverted arcs.

  4. Before a cloud can be saved with a viewpoint, it needs to be terminated correctly. To terminate the cloud, right-click in the Scene View.
