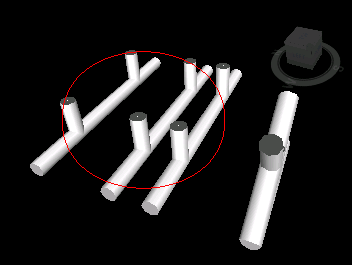

Draw an Ellipse

  1. Click Viewpoint tab > Save, Load & Playback panel > Saved Viewpoints drop-down, and choose the viewpoint that you want to review.

  2. Click Review tab > Markup panel > Draw drop-down, and click Ellipse .

  3. Click and drag a box in the viewpoint to outline the ellipse.

  4. Release the mouse to place the ellipse in the viewpoint.

Parent page: Markup Tools Panel
