Tutorial 2 - Lattice and Skin Optimization of a Single-Body Model

The following video demonstrates the complete tutorial.

Video length (14:03).

In this tutorial, you will

1. Repair a part in Netfabb.
2. Send the part to the Optimization Utility, where you will divide the part into lattice and skin regions, apply kernels, simulate the part, then optimize the lattice structure.
3. Return the part to Netfabb for final repair.

The part files used in Tutorials 2 and 3 are available from the Download Page.

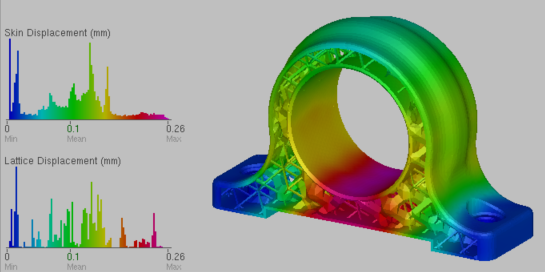

Displacement results for a lattice and skin optimization
