Subcases

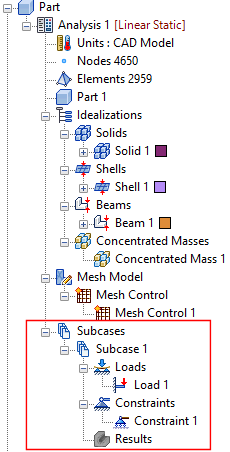

This is the next sub-level in the tree under Mesh Model. Depending on the analysis type there are different sub-levels in the Subcases branch.

When you right-click on Subcases, the following options are available from the context menu:

  • New: Creates a new subcase.
  • Paste: Allows you to paste copied items (such as a load or constraint from the Model branch of the tree or a different subcase).

Subcases by default consist of Loads, Constraints, and Results sub-level entities. You can define the loads and constraints directly (using ribbon commands) or from the model tree.

Topics in this section
  • Subcases for Different Analysis Types
    Default contents of the Subcases branch of the model tree depend on the type of analysis.
  • Multiple Subcases
    Multiple subcases can be used with a part or assembly model, and any or all of them can be active at the same time.
  • Subcases Edit
    The Edit command provides an alternative way to edit the contents of the subcase.
  • Reactions
    Use this subcase type for reaction force and moment summation.
  • Modal Setup
    This is available whenever running a modal-based analysis such as Normal Modes, Prestress Normal Modes and Modal Transient.
  • Time Steps
    Use these for a Nonlinear Transient Heat Transfer analysis or an Explicit Quasi-Static analysis.
  • Dynamics Setup
  • Nonlinear Setup
  • Fatigue Setup
  • Impact Setup
    The Impact Setup facilitates drop test and projectile impact studies.
  • Results
    After running an analysis, the Results are loaded under each Subcase in the Model tree.
  • Results XY Plotting
