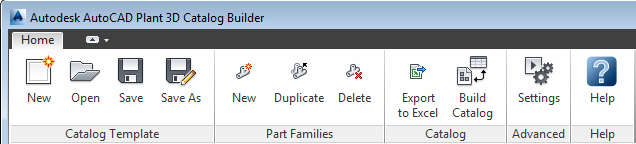

Manages catalog template files and creates catalogs.
Catalog Template
- Manages CTPL catalog template files.
Part Families
- New
- Adds a new part family to the catalog template.
- Duplicate
- Copies the selected part family to a new part family. You can select part families in the component tree view pane.
- Delete
- Removes the selected part family.
Catalog
- Export to Excel
- Creates a Microsoft Excel XLS file from the catalog template. You can specify detail for each component size (for example: parametric dimensions) using Excel.
- Build Catalog
- After you have added component size detail you can build a PCAT catalog file. After you specify an Excel file, the Build Catalog dialog box displays.
Advanced
- Displays the Catalog Builder Settings dialog box.
