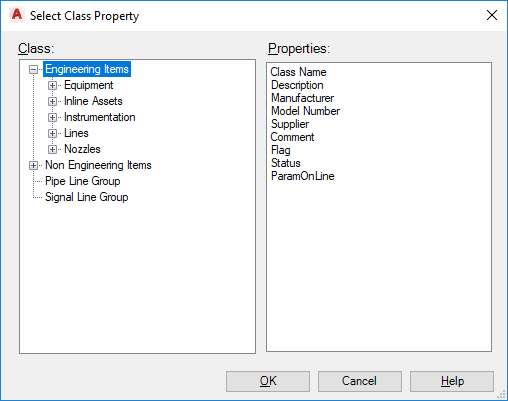

Select Class Property Dialog Box

Sets the class and property used to define the tag format

Class

Displays a list of classes to choose from for the tag format.

Property

Displays a list of properties, based on the class that is selected.

Use Target Object’s Property

Inherits the properties of the class you chose to start with.

Note:

This option is not available when adding user attributes to the bill of materials in an isometric title block.
