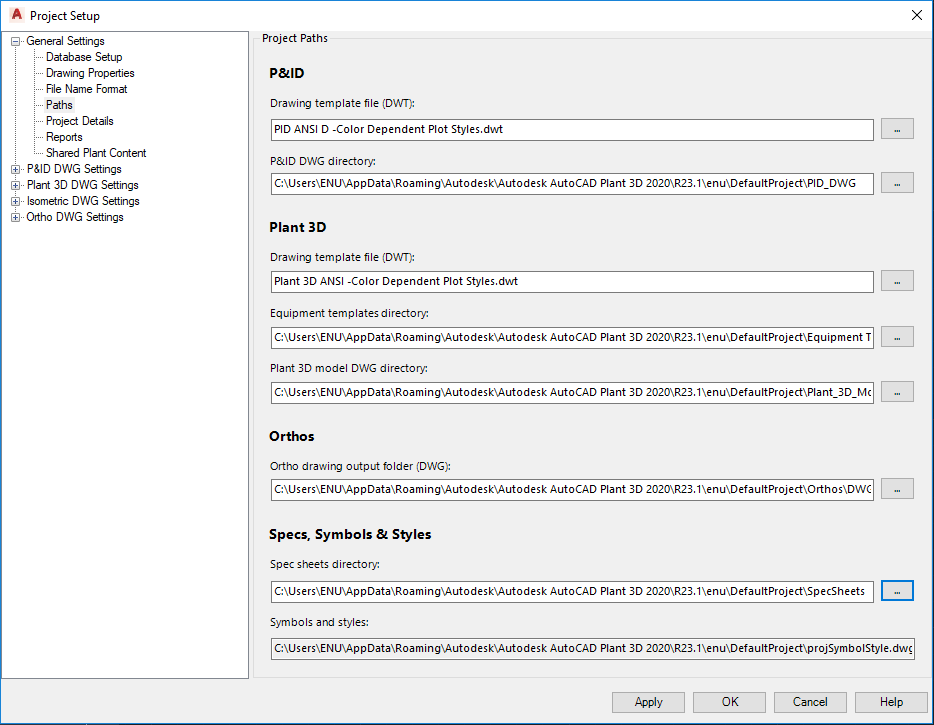

Sets the paths and directories where users access symbols, reports, the project drawing directory, and so on.
P&ID
Defines the P&ID paths.
- Drawing Template File (dwt)
-
Defines the template file that displays by default when users open a project. You can browse to select a different file.
- P&ID DWG Directory
-
Sets the location of the project drawing directory. You can browse to set another location.
Plant 3D
Defines the Plant 3D project paths.
- Drawing template file (DWT)
-
Sets the location of the project model template directory. You can browse to select another location or template.
- Equipment template directory
-
Sets the location of the equipment template directory.
- Plant 3D model DWG Directory
-
Sets the location of the project model directory. You can browse to set another location.
Orthos
- Ortho drawing output folder (DWG)
-
Sets the location for ortho drawings. You can browse to select another location.
Specs, Symbols & Styles
- Spec sheets directory
-
Sets the location of the spec sheets directory. You can browse to select another location.
- Symbols and styles
-
Displays the location where symbols are stored. You cannot edit this location.
