Specifies which piping annotations are displayed for the selected iso type.
You can specify property information for piping objects. Create and customize piping annotations with the display settings.
Enable <Type> Annotations
Controls the display of the annotation.
What to Annotate
Lists existing piping annotations defined in IsoConfig.xml. You can also add new piping annotations.
Block
Specifies the shape of the enclosure, circle, rectangle, diamond, hexagon, or oval. You can also choose not to have any enclosure..
- Scale Enclosures to Fit Text
- Expands graphics to accommodate annotation text. Some enclosure symbols always expand.
Attribute Text
Add properties for piping annotations. You can add text, add properties from classes or PCF, or add symbols.
LineNumber
You can expand PIPELINE-REFERENCE and the component field for LineNumber to add properties.

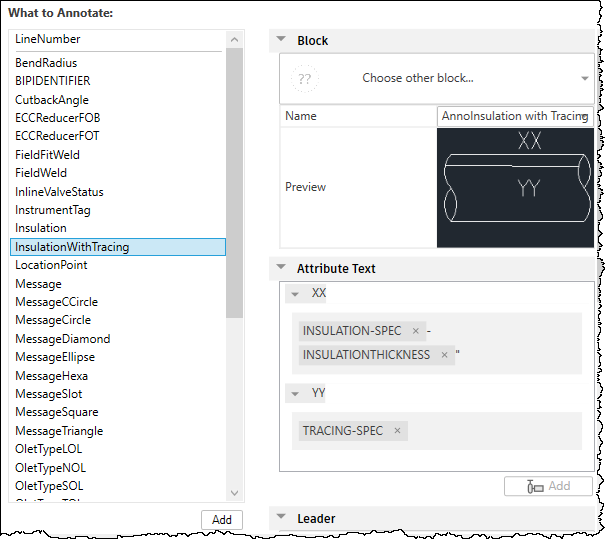

InsulationwithTracing
For blocks containing multiple properties, you can also expand the property names to add properties individually.
Leader
Specifies whether a leader line connects the object to its annotation, with or without an arrow. You can also choose never to use a leader.
- Connect to Annotation
- Specifies the leader line to connect to the corner, middle, or center of the annotation.
- Connect to Component
- Specifies the leader line to connect to the middle or end of the component.
- MLeader Style
- Specifies which multileader style is used.
- Use Leader Landing
- Specifies whether to use leader landing.
Placement
Displays annotations to be always horizontal, rotate with piping, or to show in iso plane.
- Position (relative to piping)
- Specifies the annotation is placed above or below the piping, or anywhere.
- Group with Related Annotations
- Specifies whether to group annotation with the related annotations.
- Prioritize when Grouped
- Specifies whether to prioritize current annotation when all annotations are grouped together.
Delete Annotation
Deletes the current piping annotation.
Note: LineNumber annotation cannot be deleted.
