Use the Feeds and speeds page to specify the speeds for each movement type in an inspection probe path.

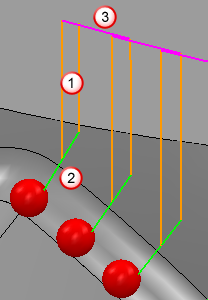

- Approach feed rate — Enter the speed of the probe as it moves between the safe area and the Approach Distance
.
- Measure feed rate — Enter the speed of the probe as it searches for the surface, starting from the Approach Distance
. The probe continues at this speed up to the Search Distance.
- Connection feed rate — Enter the speed of the probe as it moves within the safe area between approaches
. This is typically a smaller value than machine tool rapid moves, as sudden accelerations can cause the probe to inappropriately trigger.
