Exporting Machine Tool Entities

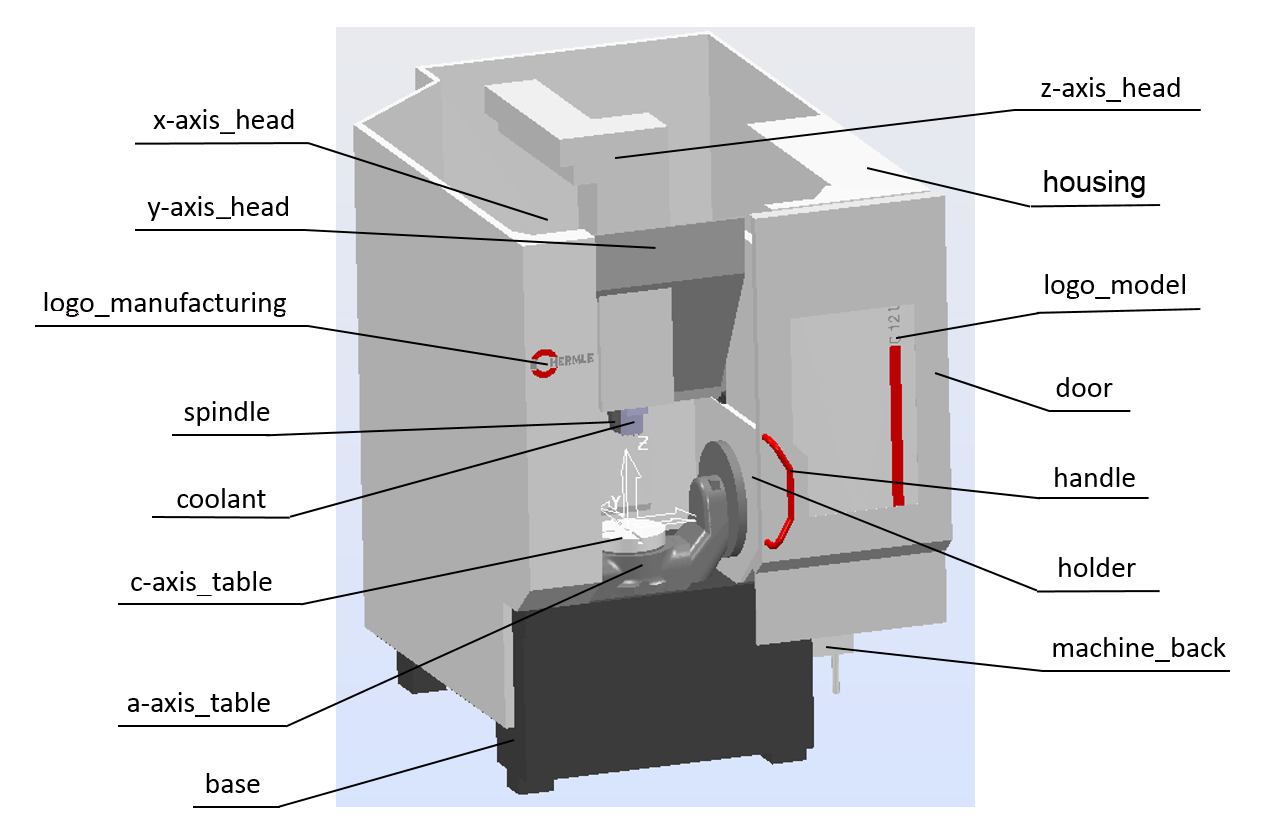

Each axis of the machine tool (for example, the spindle, table, housing and the logos) must be exported into separate *.dmt files so you can simulate them and edit their colour. See the example below machine tool Hermle_C12_SRT320.

The *.dmt file contains triangles: the more triangles, the better the simulation appears. However, with more triangles, the simulation and collision-checking run more slowly.

Choose a tolerance value:

• A tolerance value of 0.025 mm is recommended as a good balance between quality and file size for: upper surfaces of table, spindle and some other important parts in simulations (the movable parts in working area).
• A tolerance value of 0.05 mm is recommended as a good balance between quality and file size for: parts of linear and rotary movements (X-axis; Y-axis; Z-axis and additional equipment).
• A tolerance value of 0.25mm is recommended as a good balance between quality and file size for static parts, logo, base, cnc controller and other stationary elements.

If the simulation runs too slowly, reduce the triangulation tolerance value. All parts included on *.mtd should not occupy more than 3-5 MB of memory.

The tolerance values are specified in the PowerShape Options dialog. To view or change the settings, select File > Options > Application Options > Data Exchange > Triangle/Mesh.
