Cache RealView

Cache RealView files

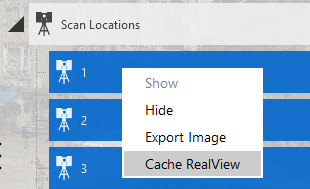

You can right click on scan locations and choose Cache RealView. This will cache the overview map and RealView files needed for optimized RealView viewing experience. You can also copy the overview maps (.png) and RealView cache files (.rch) found in Temporary Cache Files folder to Autodesk Connected Drive for RealView viewing in web browser.

Copy Files for RealView Web Viewing

To manually copy or upload files needed for RealView web viewing in Autodesk Drive, please follow the following steps:

Step 1. Generate RealView Cache Files and Overview Maps

1. In ReCap, select all scan locations of interest (use SHIFT and/or CTRL to select multiple scans)
2. Right click and choose Cache RealView. This will generate overview maps (.png) and RealView cache files (.rch) which can be found in < project_name > Support\Temporary Cache Files.

Step 2. Upload the Files

If you have Desktop Connector installed and running, you can use Windows Explorer to copy the files. Alternatively, you can use web browser and upload the files to https://drive.autodesk.com/

Create the following folder structure:

• Project folder: Copy < project_name >.rcp from project folder and overview maps (.png) from < project_name > Support\Temporary Cache Files
  • < project_name > Support
    • Temporary Cache Files: copy RealView cache files (*.rch) from < project_name > Support\Temporary Cache File. We only need < guid >.rch files. You do not need to copy < guid >-preview.rch files as they are not needed for RealView web viewing.

In summary, the folder structure should look like this:

• project folder
  • < project_name >.rcp
  • .png
  • < project_name > Support
    • Temporary Cache Files .rch
