Using Results Connect

Insert formulas

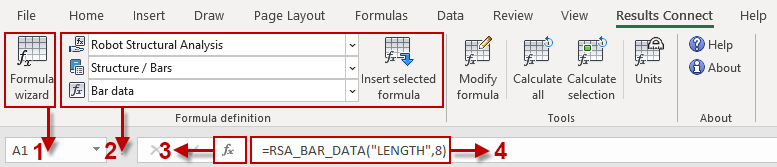

You can define formulas, that allow acquiring information from Autodesk Robot Structural Analysis Professional project, using either of the following ways.

1. Formula wizard

Insert a formula by using Formula wizard dialog.

You can access it from the Ribbon by clicking Results Connect tab Formula definition panel Formula wizard.

2. Insert selected formula

You can specify the following settings by using selection drop-down list available on the Ribbon:

• provider - specify a provider (program) from which information or results will be downloaded from
• category - specify a category for formulas or select ALL to view an alphabetical list of formulas
  Note: Formulas are categorized by groups depending on type of information that can be obtained (for example Selection).
• formula - specify a formula (for example List of selected objects).

After specifying settings above, you can insert the selected formula by using Insert formula dialog.

You can access it from the Ribbon by clicking Results Connect tab Formula definition panel Insert selected formula.

3. Insert function

Insert a formula with Insert Function dialog.

You can access it from:

• Ribbon - by clicking Formulas tab Function library panel Insert Function
• Formula Bar - by clicking Insert Function icon.

4. Insert formula manually

Define a formula by typing a formula syntax manually in the address bar.

.

You can find all necessary information about each formula in the Formula list - Robot Structural Analysis and Formula list - Results Connect.

Note: A formula always starts with an equal sign (=) and text defined as an argument must be enclosed in quotation marks.

Modify formulas

You can modify formulas after inserting them in the worksheet.

Modification of the selected formula

Modify a formula using either of the following ways:

• using Modify formula dialog

  You can access it from the Ribbon by clicking Results Connect tab Tools panel Modify formula.

• modifying a formula syntax manually in the address bar.

Calculate formulas

You can calculate formulas after modifying the project in Autodesk Robot Structural Analysis Professional.

Calculation of formulas defined in the worksheet

The following types of calculations are available:

• Calculate all - calculate all formulas in the worksheet

  You can access it from the Ribbon by clicking Results Connect tab Tools panel Calculate all.

• Calculate selection - calculate selected formulas from the worksheet

  You can access it from the Ribbon by clicking Results Connect tab Tools panel Calculate selection.

Set up units

You can use the Units dialog to set up units in Results Connect.

You can access it from the Ribbon by clicking Results Connect tab Tools panel Units.
