Structural columns are identified in a column schedule by intersecting grid lines and by their top and bottom constraints and offsets. They are placed into the column schedules according to these identifications.
Video: Create Graphical Column Schedules
Video: Modify Graphical Column Schedules
- View tab
Create panelSchedules drop-down
(Graphical Column Schedule)

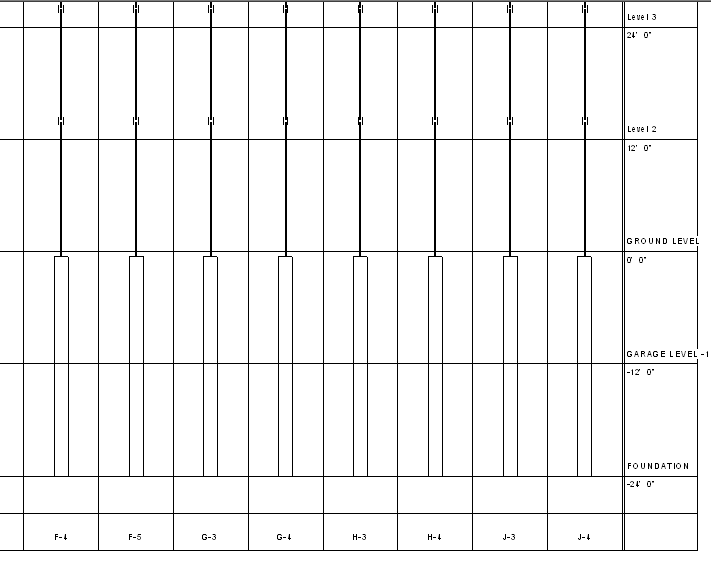

Columns identified by intersections with splicing and base plates visible
