Toposolids

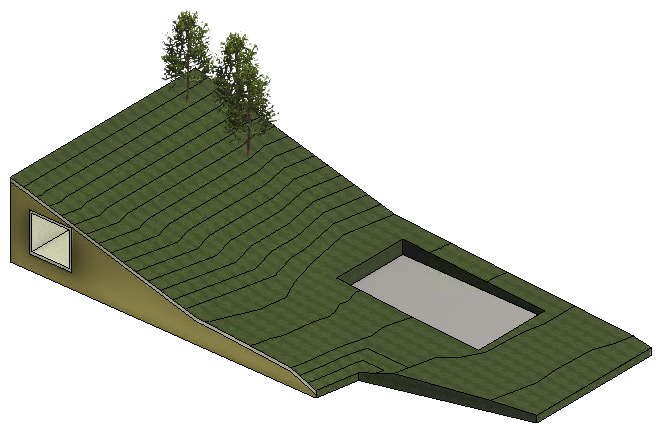

To represent the topography of the site, create a toposolid in the Revit model.

Massing & Site tabModel Site panel

  • (Toposolid)
  • (Create from Sketch)
  • (Create from Import)
  • (Sub-Divide)
  • (Graded Region)
Topics in this section
  • About Toposolids
    The Toposolid tool defines a topographical element using defined elevation points or imported data.
  • Create a Toposolid by Sketching
    Create a toposolid by sketching a boundary and placing elevation points.
  • Video: Create a Toposolid
    Create a toposolid by sketching a boundary and defining elevation points.
  • Video: Working with Toposolids
    Excavate a toposolid with floor elements and modify a toposolid with XYZ snaps.
  • Create a Toposolid from Imported Data
    Automatically generate a toposolid based on 3D contour data imported from DWG, DXF, DGN, or CSV points files.
  • Simplify Topography
    Each point in a topography creates triangulated geometry, which adds to the computational overhead. When an element is created using a large number of points, you can simplify it to improve system performance. When the element is simplified, the accuracy and geometry of the contours may be affected depending on the specific conditions of the topography. After the element has been simplified, verify the contours and geometry. Add points for accuracy if needed.
  • Toposolid Smooth Shading
    Enable Toposolid Smooth Shading to smooth the display of toposolid elements in your model. Toposolids are smoothed in views using Shaded, Consistent Colors, Textures, and Realistic visual styles.
  • Control Contour Display on Toposolids
    Specify settings for contour line display, on toposolid family types.
  • Sub-divide a Toposolid
    Define an area of a toposolid to offset from the original toposolid surface.
  • Toposolid Sub-Division Instance Properties
    Modify instance properties of a sub-division of a toposolid to change type, and offset.
  • Create a Graded Region
    Grade areas of the topography, changing elevations at selected points, to develop the proposed site design.
  • Toposolid: Excavate and Remove Excavation
    Use a floor, roof, or toposolid to cut volume from a host toposolid.
  • Toposolid: Excavation Volume Parameters
    Use the individual volume and total excavation information to know the exact amount of soil to be removed from the toposolid modeling.
  • Toposolid Instance Properties
    Modify instance properties to change a toposolid's level, height offset, slope, and more.
  • Toposolid Type Properties
    Modify type properties to change a toposolid structure, default thickness, function, and more.
Parent topic: Site Design
