GSHP w/DOAS + ERV

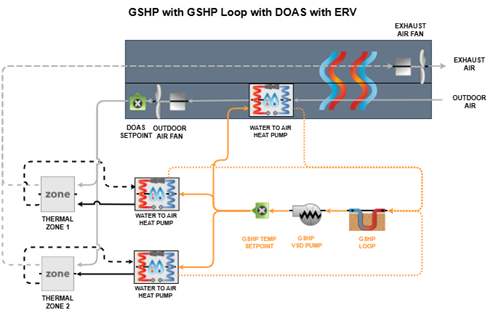

Ground Source Heat Pump Loop with DOAS with ERV - This system consists of a Ground Source Heat Pump (GSHP) serving each conditioned thermal zone. The GSHP provides heating and cooling using a water coil served by a ground heat exchanger loop. The ground heat exchanger loop is sized to provide sufficient heat transfer to serve the design heating and cooling loads of the building. A DOAS System incorporating an energy recovery wheel provides tempered (neutral) outside air to each Thermal Zone.

The default ASHRAE Standard used to set the efficiency of regulated equipment is ASHRAE 90.1-2016.

Ground Source Heat Pumps (GSHP):

Quantity: 1 per conditioned Thermal Zone

Capacity: Auto sized

Cooling: Provided by DX cooling coil

Heating: Provided by DX heating coil

Cooling and Heating Efficiency: Based on Capacity and ASHRAE Standard

Ground Loop Circulation Pumps:

Quantity: 1

Design Flow: Auto-sized

Type: Variable Speed, 30% minimum flow

Efficiency: Based on Design flow and ASHRAE Standard
