PTAC w/Low Temp GAS

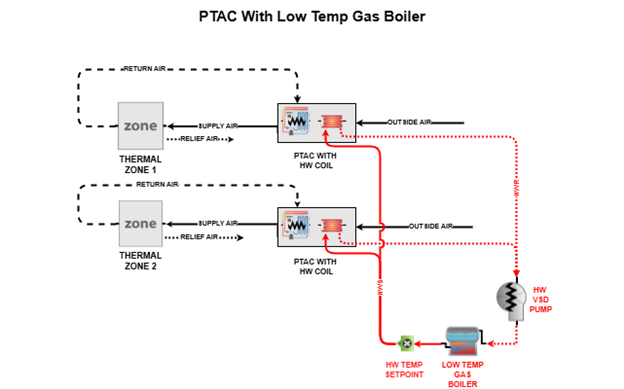

Packaged Terminal Air Conditioner with low temperature gas boiler - This system consists of a Packaged Terminal Air Conditioner (PTAC) serving each conditioned thermal zone. The PTAC provides heating using a hot water coil served by a primary only variable flow hot water loop utilizing a natural gas boiler. The Gas Boiler is controlled to supply 130°F Hot Water to the Hot Water Heating Coils The default ASHRAE Standard used to set the efficiency of regulated equipment is ASHRAE 90.1-2016.

Packaged Terminal Air Conditioner (PTAC):

Quantity: 1 per conditioned Thermal Zone

Cooling: Provided by DX cooling coil

Heating: Provided by Hot Water Coil

Cooling Capacity: Auto sized

Cooling Efficiency: Based on Capacity and ASHRAE Standard

Hot Water Boiler:

Quantity: 1

Capacity: Auto-sized, using a Design Temp of 130ºF

Type: Natural Gas, Condensing

Controls: Based on Capacity and ASHRAE Standard

Efficiency: Based on Capacity and ASHRAE Standard

Hot Water Pumps:

Quantity: 1

Design Flow: Auto-sized, using a Design Temp drop of 20 ºF

Type: Variable Speed, 30% minimum flow

Efficiency: Based on Design flow and ASHRAE Standard
