Autodesk Assistant in Revit (Tech Preview)

How can I access Autodesk Assistant?

1. In Revit, sign in with your Autodesk account.

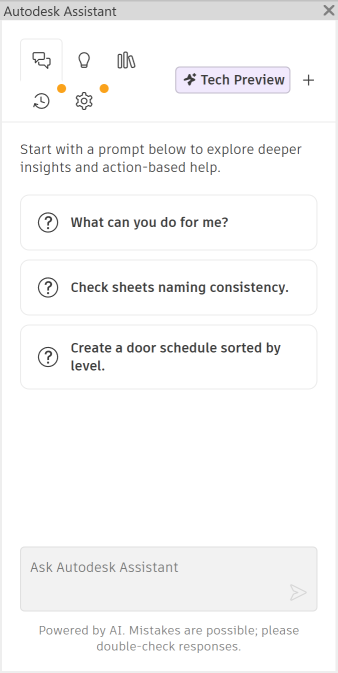

2. Click the icon next to the InfoCenter in the title bar to open the Autodesk Assistant panel.

Alternatively, you can click View > User Interface > Autodesk Assistant.

Can I move the Autodesk Assistant panel to another location?

The Autodesk Assistant panel behaves just like any other panel or palette in Revit:

• To move the panel, drag its title bar

• You can drag the panel to another location within the application window, stack it with the Properties palette and Project Browser, or dock it in another location

• You can also drag it outside the application window to a second screen

• You can assign a keyboard shortcut to it

What can Autodesk Assistant do for me?

The Assistant can currently support Contextual Help (e.g., “How do I create a section view?”), Model Query (“Find all doors on Level 1”), and Model Modification (“Create a floor plan for Level 2”) prompts. Just click the suggested prompt “What can you do for me?” to learn more.

The following video demonstrates an AI‑driven workflow in which a Level 2 floor plan is generated, refined using an appropriate view template, automatically room‑tagged, and then fully reused to automate the creation of equivalent plans for Levels 3 and 4. The process concludes with automated sheet creation, naming, layout, and final PDF export.

Here are the prompts used for Autodesk Assistant in this video:

1. Create a new floor plan for Level 1 named “L1‑AI.”
2. Apply an appropriate view template.
3. Tag all rooms in the view.
4. Repeat the same process from the beginning for Levels 2 and 3.
5. Create new sheets and place each new plan on its own sheet.
6. Add “Demo” to the beginning of each sheet name.
7. Print the new sheets to a PDF file.

Supported MCP Tools

The Autodesk Assistant in Revit added support for MCP (Model Context Protocol) architecture. This switch gives users more reliable and faster answers.

There are 6 groups of MCP tools the Assistant currently supports:

• Model Query—understanding and analyzing Revit model
• Export—project deliverable generation
• Sheet Management & Documentation—organizing project deliverables
• Room Management—architectural space planning and coordination
• Schedules & Data Management—project data organization and reporting
• Element Operations & Manipulation—direct element control and modification

Features not available in Autodesk Assistant in Revit

• You can’t connect with a support agent
