Overview
Description
This form displays an overview summary of the Project, Single Design Section or Single Design Beam which has just been opened.
A graphic is displayed simultaneously.
Outline Procedure
This form is displayed only on opening a file when the Display Overview checkbox on the General tab of the Preferences form is checked.

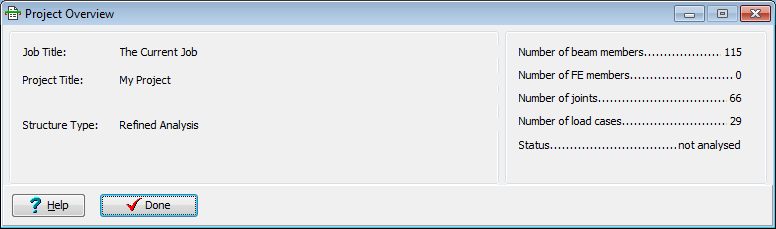

For the Project Overview, the form may show an additional panel giving details of the file generation history (for instance, if the model was created In Autodesk® InfraWorks®, the details of this software will be shown). These creation details can be copied to the clipboard.

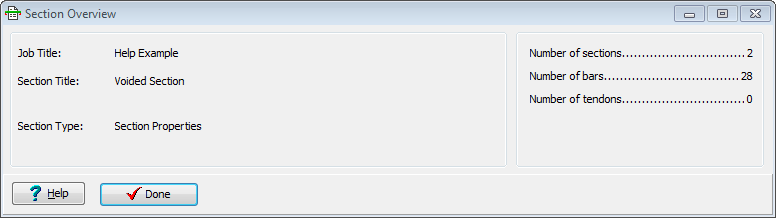

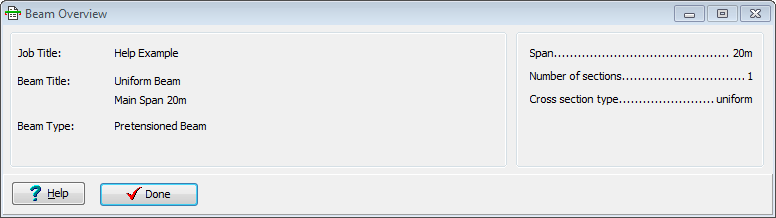

Form Graphic
