Face-normal Rendering (2023.2)

Improved face-normal rendering, by adding two new colors to show invalid normals. These help you detect files that are broken and can only be repaired by recalculating the normals.

  • Red normals are NaN or have a zero length, which creates NaNs when normalized.
  • Pink normals have an absolute angle between the face and vertex normal above a threshold, such as 85°.
Invalid Normals Valid Normals

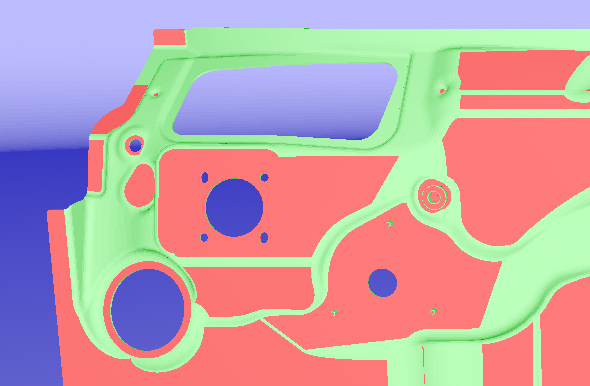

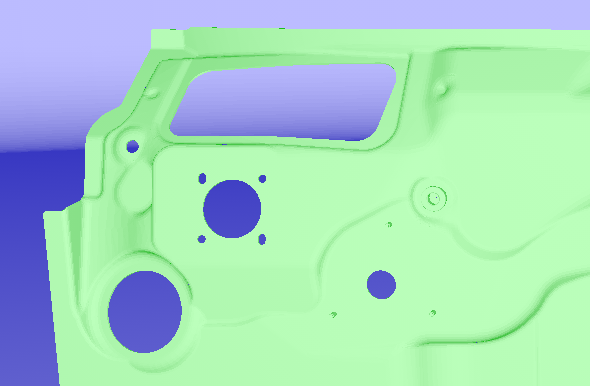

Image of a file displaying red NaN and invalid normals Image of a file displaying fixes

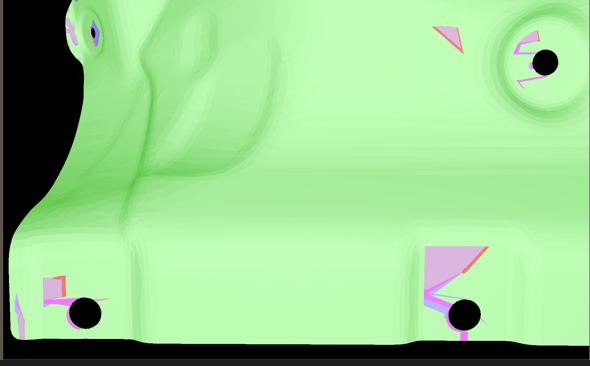

Image of a file displaying red and pink normals Image of a file displaying red and pink normals and fixes
