AutoCAD Model Performance Analytics

AutoCAD MPA (Model Performance Analytics).

A solution which extracts information from models contained in a collection of DWG files to assess DWG file health and the performance of the model within an AutoCAD based application session.

A solution which extracts information from models contained in a collection of DWG files to assess DWG file health and the performance of the model within an AutoCAD based application session. Supported models within DWG files are AutoCAD, Civil 3D, AutoCAD Architecture, AutoCAD MEP, and AutoCAD Plant 3D.

This solution is comprised of the following components:

1. MS SQL Server database to contain extracted metrics.

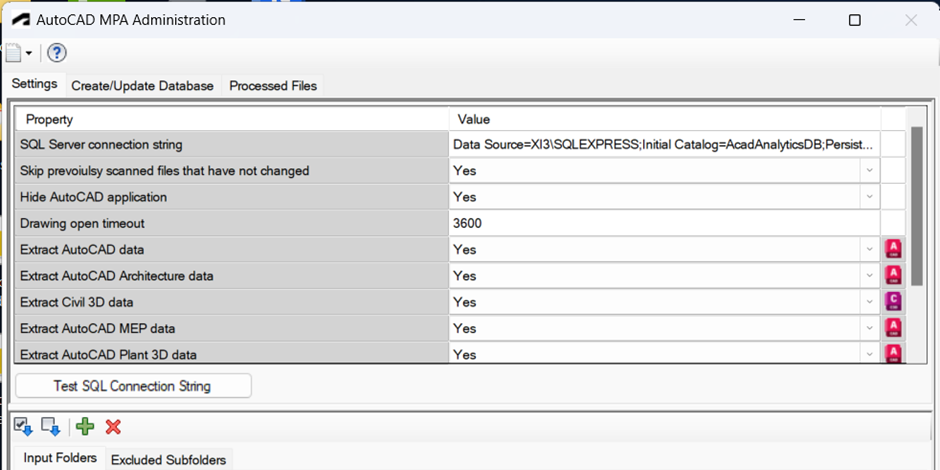

2. Administration application for configuring the MPA (SQL Server connection string, feature extraction options, and defining the collection of DWGs to extracted data from).
3. A windows application server for invoking AutoCAD application session for each DWG.
4. An AutoCAD application plugin which extracts metrics and populates tables within the SQL Server database.
5. Power BI template to analyze the data contained in the SQL Server database.

This application is integrated with the WA Subscription system. Users are required to authenticate before accessing the tool. The authentication remains valid for the same day, and users must complete the authentication process once each day upon their first launch
