MDX Datum360
The Model Development Next Generation (MDX) is a solution developed by Autodesk Consulting to assist project teams in the creation and management of project or asset information through a framework of tools and data-centric processes. MDX is enabled by configuring the Connected Data Platform with a class library from the Datum Class Library, on the Autodesk Datum platform, along with specific inputs that drive automations in Autodesk design software. Existing or derived properties are calculated from 3D models and pushed to Datum (formerly PIM360), on the Autodesk Datum platform, to meet the unique Exchange Information Requirements (EIR) of any sector or project.

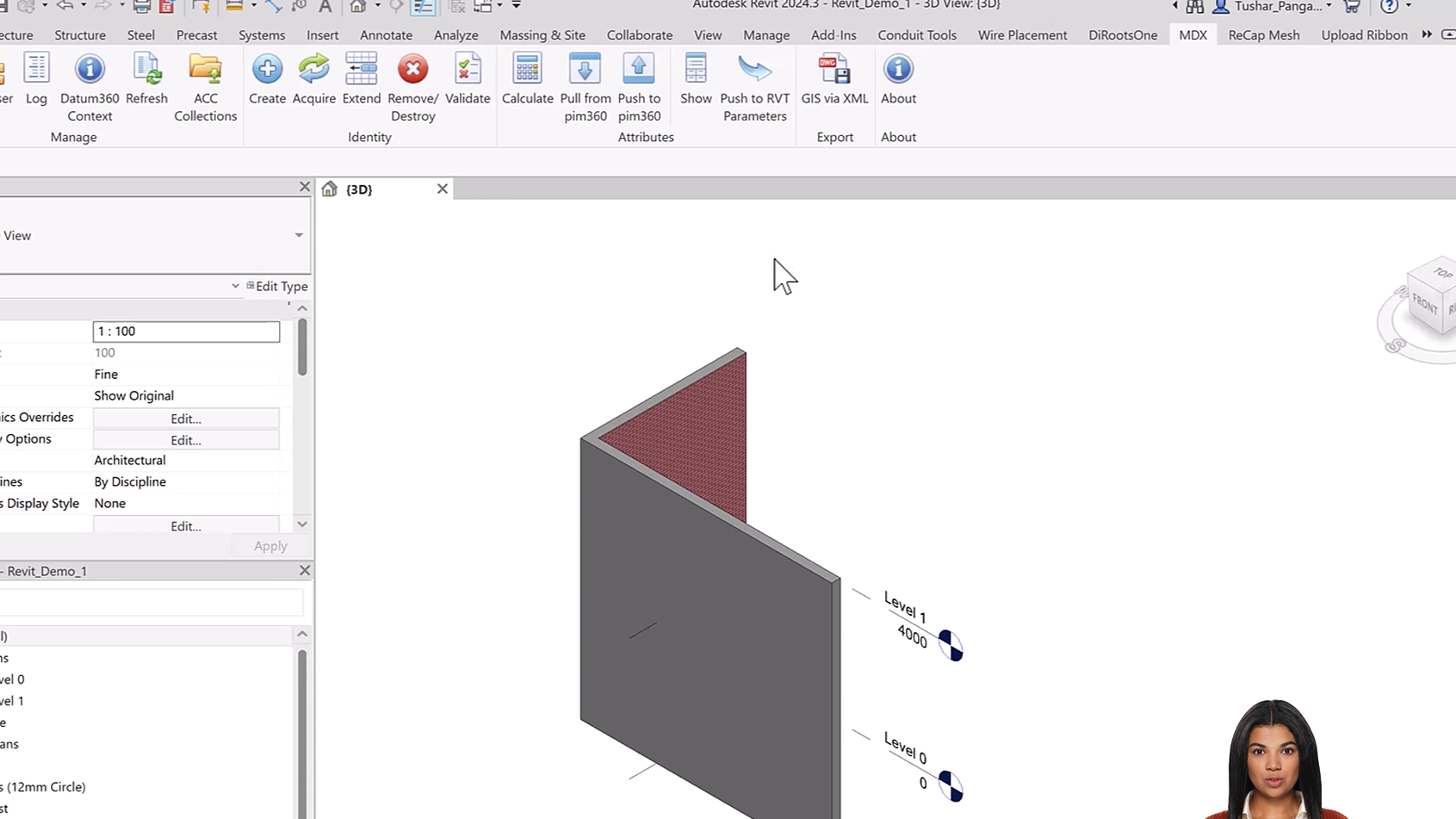

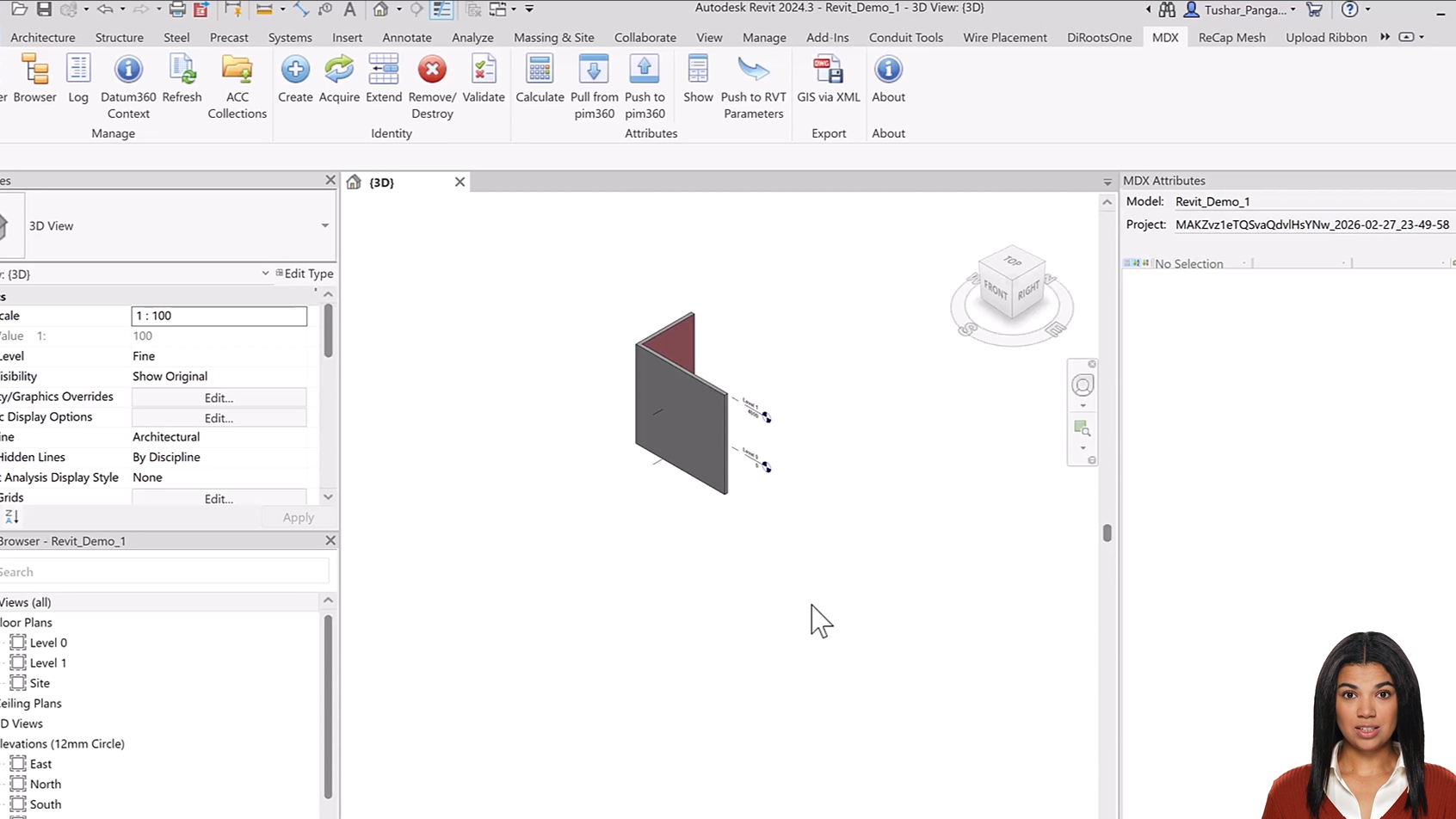

From an end-user perspective, asset information is populated through plug-ins (MDX Clients) for Autodesk software—including Civil 3D, Revit, and Plant 3D—to support the classification and attribution of model entities according to project standards. MDX can automate the production of attribute values, such as an asset’s coordinates or start/end chainage, when associated with a Civil 3D alignment or other information derived from the model. Business rules can be configured using native entity properties in AutoCAD, Civil 3D, Map 3D, Plant 3D, and Revit to capture information consistently, regardless of the user.
The platform can be extended with custom plug-ins or automations created using industry-standard programming techniques for Autodesk APIs. Information can also be written back to the models if desired, with precise control over what information is embedded in properties. All data is stored and synced in Datum (formerly PIM360), on the Autodesk Datum platform, where it can be accessed and interrogated by end users through a web interface. The platform manages and records changes to the class library as well as the individual attribute values for assets tagged in Project Information Models.
Exchange Transform and Load (ETL) operations are configured via the Datum Class Library on the Autodesk Datum platform, enabling integrations into the wider application ecosystem, such as Autodesk Construction Cloud (ACC). This can include automated population of information from design models into construction check sheets and other ACC modules. Additionally, ETLs can be configured to generate tables or schedules for project delivery, handover, and downstream processes.
Please note: this tool requires Consulting Implementation Services for delivery and deployment. Contact wa-support@autodesk.com for further details.
