In entering a workshop, you have the opportunity to examine your project model from two distinct perspectives:

Scale Model View

A screenshot showing a scale model view of a city on the Workshop table

In Scale Model View, you and your team can look at a “dollhouse” view of your model. From here, you can scale and rotate your model to get the right view, and jump into 1:1 mode.

  • To scale your model: Point at your model with both controllers and hold down the grip/grab buttons on both controllers. Open your arms out wide to scale your model up or bring them together to scale your model down.
  • To move your model: Point at your model with your dominant hand, hold down the grab button, and move your hand laterally.
  • To rotate your model: Point at your model with your dominant hand, hold down the grab button, and move your thumb stick left or right. You can also push/pull to rotate your model while it is grabbed, kind of like steering a wheel!

1:1 View

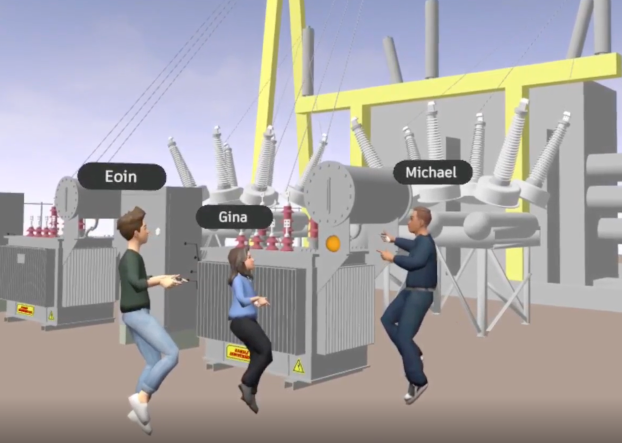

A screenshot in VR showing 1 to 1 view inside a model

In 1:1 mode, you can move around your model at real scale.

Entering 1:1 View

To enter 1:1 View, simply teleport anywhere in your model. We recommend scaling your model up if you’re looking for a precise destination.

  1. Point and hold your thumb stick forward.
  2. Aim your controller at the scale model on the table.
  3. Wait until you see the upside-down cone figure in the general area you're hoping to go.
  4. Consider using the edge of the table to section your model to access an interior portion of your model if desired.
  5. Release your thumb stick to be transported into your model at 1:1 scale, in the location you saw the cone symbol.

For more information about Navigating within Workshop XR, visit our Navigation 101 article.

If your model has issues associated with it, they will be visualized as colored spheres, similar to how you’d see them in ACC.

  • Point to see the name of the issue, and use your trigger to select the issue to open its details in your Console.
  • You can also “Go to Issue” by opening the Issue Console from the Core Menu and go directly to whatever issue you and your team would like to discuss.
