How to create Gears (spur, worm, and helical gears) in Fusion

Technical Support

Issue:

Recommendation on how to create different types of Gears in Fusion - (spur, worm, and helical gears)

Solution:

Spur Gear with in-built Add-in

To create a spur Gear in Fusion:

  1. Utilities.
  2. Scripts and add-ons.

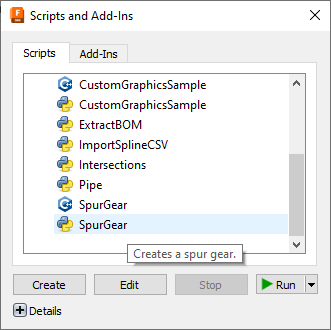

Spur gear add-in

      3. SpurGear.
      4. Run.

Spur gear add in settings.

Complex Gears (worm, helical) with custom Add-ins

  1. Navigate to the Fusion App Store or the official Autodesk Add-ins repository.
  2. Download and install one or more of the following:
  3. Input the gear parameters and generate the gear geometry
