Class Description

Function set for operating on DAG nodes.

__init__()
Initializes a new, empty MFnDagNode functionset.

__init__(MObject)
Initializes a new MFnDagNode functionset and attaches it to a
DAG node.

__init__(MDagPath)
Initializes a new MFnDagNode functionset and attaches it to a
DAG path.

Method resolution order:
-   MFnDagNode
-   MFnDependencyNode
-   MFnBase
-   __builtin__.object

Base Class

MFnDependencyNode

Constructors

Signature

Parameters

Description

MFnDagNode()

Default constructor. Returns a new MFnDagNode function set with no Maya object attached.

MFnDagNode(object)

object - MObject

Returns a new MFnDagNode function set, attached to the specified Maya object.

MFnDagNode(path)

path - MDagPath

Returns a new MFnDagNode function set, attached to the object at the end of the specified DAG path.

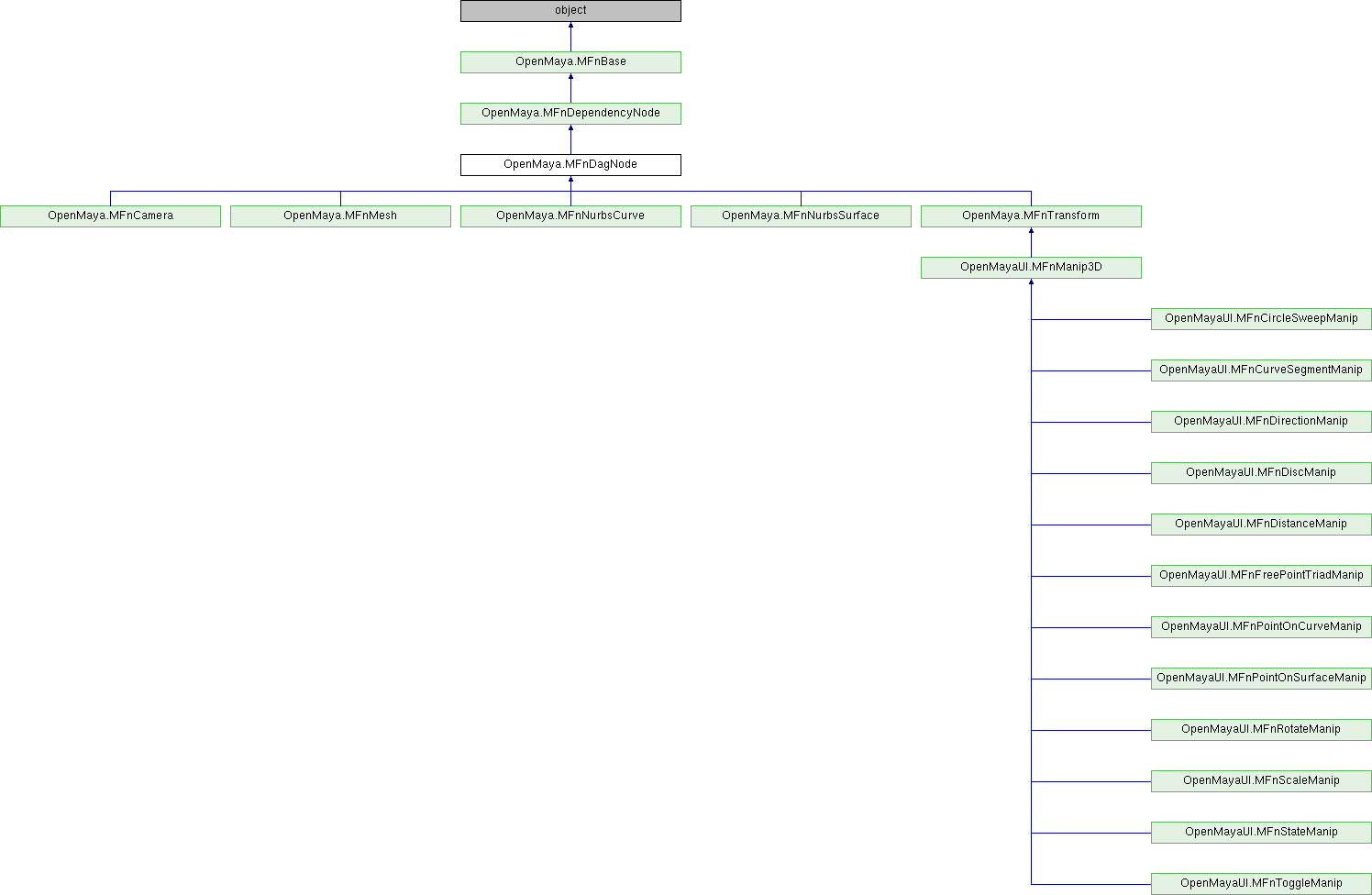

Inheritance diagram for OpenMaya.MFnDagNode:

Public Member Functions
	__init__ ()

	addChild ()

	child ()

	childCount ()

	create ()

	dagPath ()

	dagRoot ()

	duplicate ()

	fullPathName ()

	getAllPaths ()

	getConnectedSetsAndMembers ()

	getPath ()

	hasChild ()

	hasParent ()

	instanceCount ()

	isChildOf ()

	isInstanced ()

	isInstancedAttribute ()

	isParentOf ()

	parent ()

	parentCount ()

	partialPathName ()

	removeChild ()

	removeChildAt ()

	setObject ()

	transformationMatrix ()

Public Member Functions inherited from OpenMaya.MFnDependencyNode
	__init__ ()

	absoluteName ()

	addAttribute ()

	addExternalContentForFileAttr ()

	attribute ()

	attributeClass ()

	attributeCount ()

	canBeWritten ()

	create ()

	dgCallbackIds ()

	dgCallbacks ()

	dgTimer ()

	dgTimerOff ()

	dgTimerOn ()

	dgTimerQueryState ()

	dgTimerReset ()

	findAlias ()

	findPlug ()

	getAffectedAttributes ()

	getAffectingAttributes ()

	getAliasAttr ()

	getAliasList ()

	getConnections ()

	getExternalContent ()

	hasAttribute ()

	hasUniqueName ()

	isFlagSet ()

	isNewAttribute ()

	isTrackingEdits ()

	name ()

	plugsAlias ()

	removeAttribute ()

	reorderedAttribute ()

	setAlias ()

	setDoNotWrite ()

	setExternalContent ()

	setExternalContentForFileAttr ()

	setFlag ()

	setName ()

	setUuid ()

	userNode ()

	uuid ()

Public Member Functions inherited from OpenMaya.MFnBase
	__init__ ()

	hasObj ()

	object ()

	setObject ()

	type ()

Static Public Attributes
int	kNextPos = 255

Static Public Attributes inherited from OpenMaya.MFnDependencyNode
int	kTimerMetrics = 9

int	kTimerTypes = 3

int	kExtensionAttr = 3

int	kInvalidAttr = 4

int	kLocalDynamicAttr = 1

int	kNormalAttr = 2

int	kTimerInvalidState = 3

int	kTimerOff = 0

int	kTimerOn = 1

int	kTimerUninitialized = 2

int	kTimerMetric_callback = 0

int	kTimerMetric_callbackNotViaAPI = 6

int	kTimerMetric_callbackViaAPI = 5

int	kTimerMetric_compute = 1

int	kTimerMetric_computeDuringCallback = 7

int	kTimerMetric_computeNotDuringCallback = 8

int	kTimerMetric_dirty = 2

int	kTimerMetric_draw = 3

int	kTimerMetric_fetch = 4

int	kTimerType_count = 2

int	kTimerType_inclusive = 1

int	kTimerType_self = 0

Properties
	boundingBox

	inModel

	inUnderWorld

	isInstanceable

	isIntermediateObject

	objectColor

	objectColorRGB

	objectColorType

	useObjectColor

Properties inherited from OpenMaya.MFnDependencyNode
	isDefaultNode

	isFromReferencedFile

	isLocked

	isShared

	namespace

	pluginName

	typeId

	typeName

Additional Inherited Members
Static Public Member Functions inherited from OpenMaya.MFnDependencyNode
	allocateFlag ()

	classification ()

	deallocateAllFlags ()

	deallocateFlag ()

Constructor & Destructor Documentation

OpenMaya.MFnDagNode.__init__ ( )

x.__init__(...) initializes x; see help(type(x)) for signature

Member Function Documentation

OpenMaya.MFnDagNode.addChild ( )

addChild(node, index=kNextPos, keepExistingParents=False) -> self

Makes a node a child of this one.

Signature:	addChild(node, index=kNextPos, keepExistingParents=False)
Parameters:	node - MObject index - int keepExistingParents - bool
Returns:	Reference to self.
Description:	Parent's node under this node, making it the index'th child and moving other children down to make room, if necessary. If index is kNextPos then it is added to the end of the list of children. If keepExistingParents is False the child node will be removed from its existing parents, otherwise they will be retained.

OpenMaya.MFnDagNode.child ( )

child(index) -> MObject

Returns the specified child of this node.

Signature:	child(index)
Parameters:	index - int
Returns:	MObject
Description:	Returns the node's index'th child.

OpenMaya.MFnDagNode.childCount ( )

childCount() -> int

Returns the number of nodes which are children of this one.

Signature:	childCount()
Parameters:
Returns:	int
Description:	Returns the number of nodes which are parented under this one.

OpenMaya.MFnDagNode.create ( )

create(type, name=None, parent=MObject.kNullObj) -> MObject

Creates a new DAG node of the specified type, with the given name.
The type may be either a type name or a type ID. If no name is given
then a unique name will be generated by combining the type name with
an integer.

If a parent is given then the new node will be parented under it and
the functionset will be attached to the newly-created node. The
newly-created node will be returned.

If no parent is given and the new node is a transform, it will be
parented under the world and the functionset will be attached to the
newly-created transform. The newly-created transform will be returned.

If no parent is given and the new node is not a transform then a
transform node will be created under the world, the new node will be
parented under it, and the functionset will be attached to the
transform. The transform will be returned.

Signature:	create(type, name=None, parent=MObject.kNullObj)
Parameters:	type - string or MTypeId name - string parent - MObject
Returns:	MObject<span>
Description:	Creates a new DAG node of the specified type, with the given name. type may be either a type name or a type ID. If no name is given then a unique name will be generated by combining the type name with an integer. If a parent is given then the new node will be parented under it and the functionset will be attached to the newly-created node. The newly-created node will be returned. If no parent is given and the new node is a transform, it will be parented under the world and the functionset will be attached to the newly-created transform. The newly-created transform will bereturned. If no parent is given and the new node is not a transform then a transform node will be created under the world, the new node will be parented under it, and the functionset will be attached to the transform. The transform will be returned.

OpenMaya.MFnDagNode.dagPath ( )

dagPath() -> MDagPath

Returns the DAG path to which this function set is attached. Raises a TypeError if the function set is attached to an MObject rather than a path.

Signature:	dagPath()
Parameters:
Returns:	MDagPath
Description:	Returns the DAG path to which this function set is attached. Raises a TypeError if the function set is not attached to a path (e.g. it was initialized with an MObject).

OpenMaya.MFnDagNode.dagRoot ( )

dagRoot() -> MObject

Returns the root node of the first path leading to this node.

Signature:	dagRoot()
Parameters:
Returns:	MObject
Description:	Returns the root node of the first path leading to this node.

OpenMaya.MFnDagNode.duplicate ( )

duplicate(instance=False, instanceLeaf=False) -> MObject

Duplicates the DAG hierarchy rooted at the current node.

Signature:	duplicate(instance=False, instanceLeaf=False)
Parameters:	instance - bool instanceLeaf - bool
Returns:	MObject
Description:	Duplicates the DAG hierarchy rooted at the current node. The copy will have the same parent, if any, as the original node. If instance is false then a true copy will be made, otherwise a new node will be created which instances the child nodes of the original node. If instance is false then instanceLeaf is ignored. If instance is true and instanceLeaf is false then the child nodes of the original node are instanced. If instanceLeaf is true, then the results are similar to a copy, but the leaf level objects are instanced. Returns the new node at the top of the duplicated hierarchy.

OpenMaya.MFnDagNode.fullPathName ( )

fullPathName() -> string

Returns the full path of the attached object, from the root of the DAG on down.

Signature:	fullPathName()
Parameters:
Returns:	string
Description:	Returns the full path of the attached object, from the root of the DAG on down.

OpenMaya.MFnDagNode.getAllPaths ( )

getAllPaths() -> MDagPathArray

Returns all of the DAG paths which lead to the object to which this function set is attached.

Signature:	getAllPaths()
Parameters:
Returns:	MDagPathArray
Description:	Returns all of the DAG paths which lead to the object to which this function set is attached.

OpenMaya.MFnDagNode.getConnectedSetsAndMembers ( )

getConnectedSetsAndMembers(instance, renderableSetsOnly) -> (MObjectArray, MObjectArray)

Returns a tuple containing an array of sets and an array of the
components of the DAG object which are in those sets. If the entire object is in a set, then the corresponding entry in the comps array will have no elements in it.

OpenMaya.MFnDagNode.getPath ( )

getPath() -> MDagPath

Returns the DAG path to which this function set is attached, or the first path to the node if the function set is attached to an MObject.

Signature:	getPath()
Parameters:
Returns:	MDagPath
Description:	Returns the DAG path to which this function set is attached. If the function set is attached to an MObject rather tha a DAG path then the first path to the object will be returned.

OpenMaya.MFnDagNode.hasChild ( )

hasChild(node) -> bool

Returns True if the specified node is a child of this one.

Signature:	hasChild(node)
Parameters:	node - MObject
Returns:	bool
Description:	Returns True if node is a child of this node.

OpenMaya.MFnDagNode.hasParent ( )

hasParent(node) -> bool

Returns True if the specified node is a parent of this one.

Signature:	hasParent(node)
Parameters:	node - MObject
Returns:	bool
Description:	Returns True if node is a parent of this node.

OpenMaya.MFnDagNode.instanceCount ( )

instanceCount(indirect) -> int

Returns the number of instances for this node.

Signature:	instanceCount(indirect)
Parameters:	indirect - bool
Returns:	int
Description:	Returns the number of instances for this node. If indirect is True then the instancing of ancestor nodes further up the DAG path is included, otherwise only the immediate instancing of this node is counted.

OpenMaya.MFnDagNode.isChildOf ( )

isChildOf(node) -> bool

Returns True if the specified node is a parent of this one.

Signature:	isChildOf(node)
Parameters:	node - MObject
Returns:	bool
Description:	Alias for hasParent().

OpenMaya.MFnDagNode.isInstanced ( )

isInstanced(indirect=True) -> bool

Returns True if this node is instanced.

Signature:	isInstanced(indirect=True)
Parameters:	indirect - bool
Returns:	bool
Description:	Returns True if this node is instanced (i.e. has multiple parents). If indirect is True then the instancing of ancestor nodes further up the DAG path is included, otherwise not.

OpenMaya.MFnDagNode.isInstancedAttribute ( )

isInstancedAttribute(attr) -> bool

Returns True if the specified attribute is an instanced attribute of this node.

Signature:	isInstancedAttribute(attr)
Parameters:	attr - MObject
Returns:	bool
Description:	Returns True if attr is an instanced attribute of this node.

OpenMaya.MFnDagNode.isParentOf ( )

isParentOf(node) -> bool

Returns True if the specified node is a child of this one.

Signature:	isParentOf(node)
Parameters:	node - MObject
Returns:	bool
Description:	Alias for hasChild().

OpenMaya.MFnDagNode.parent ( )

parent(index) -> MObject

Returns the specified parent of this node.

Signature:	parent(index)
Parameters:	index - int
Returns:	MObject
Description:	Returns the node's index'th parent.

OpenMaya.MFnDagNode.parentCount ( )

parentCount() -> int

Returns the number of parents this node has.

Signature:	parentCount()
Parameters:
Returns:	int
Description:	Returns the number of different nodes under which this one is parented.

OpenMaya.MFnDagNode.partialPathName ( )

partialPathName() -> string

Returns the minimum path string necessary to uniquely identify the attached object.

Signature:	partialPathName()
Parameters:
Returns:	string
Description:	Returns the minimum path necessary to uniquely identify the attached object.

OpenMaya.MFnDagNode.removeChild ( )

removeChild(node) -> self

Removes the child, specified by MObject, reparenting it under the world.

Signature:	removeChild(node)
Parameters:	node - MObject
Returns:	Reference to self.
Description:	Removes node as a child of this node.

OpenMaya.MFnDagNode.removeChildAt ( )

removeChildAt(index) -> self

Removes the child, specified by index, reparenting it under the world.

Signature:	removeChildAt(index)
Parameters:	index - int
Returns:	Reference to self.
Description:	Removes the index'th child from this node.

OpenMaya.MFnDagNode.setObject ( )

setObject(MObject or MDagPath) -> self

Attaches the function set to the specified node or DAG path.

Signature:	setObject(object)
Parameters:	object - MObject
Returns:	Reference to self.
Description:	Attaches the function set to the specified object.

Signature:	setObject(path)
Parameters:	object - MDagPath
Returns:	Reference to self.
Description:	Attaches the function set to the specified DAG path.

OpenMaya.MFnDagNode.transformationMatrix ( )

transformationMatrix() -> MMatrix

Returns the object space transformation matrix for this DAG node.

Signature:	transformationMatrix()
Parameters:
Returns:	MMatrix
Description:	Returns the object space transformation matrix for this DAG node. In general, only transform nodes have matrices associated with them. Nodes such as shapes (geometry nodes) do not have transform matrices. The identity matrix will be returned if this node does not have a transformation matrix.

Member Data Documentation

OpenMaya.MFnDagNode.kNextPos = 255

static

Name:	kNextPos
Type:	int
Description:	Used by addChild() to indicate the next empty position in the list.

Property Documentation

OpenMaya.MFnDagNode.boundingBox

static

 Node's bounding box, in object space.

Name:	boundingBox
Type:	MBoundingBox
Access:	R
Description:

OpenMaya.MFnDagNode.inModel

static

 True if the node has been added to the model.

Name:	inModel
Type:	bool
Access:	R
Description:

OpenMaya.MFnDagNode.inUnderWorld

static

 True if this node is in the underworld of another node (e.g. a curve on surface is in the underworld of the surface).

Name:	inUnderWorld
Type:	bool
Access:	R
Description:

OpenMaya.MFnDagNode.isInstanceable

static

 True if instancing is allowed for this node.

Name:	isInstanceable
Type:	bool
Access:	RW
Description:

OpenMaya.MFnDagNode.isIntermediateObject

static

 True if this node is just an intermediate in part of a larger calculation (e.g. input to a deformer).

Name:	isIntermediateObject
Type:	bool
Access:	RW
Description:

OpenMaya.MFnDagNode.objectColor

static

 Index from 0 to 7 indicating the color in which the node is to be drawn when inactive, assuming that it is drawable.

Name:	objectColor
Type:	int
Access:	RW
Description:

OpenMaya.MFnDagNode.objectColorRGB

static

 RGB value indicating the color in which the node is to be drawn when inactive, assuming that it is drawable.

OpenMaya.MFnDagNode.objectColorType

static

 Determines whether the default color, indexed object color, orRGB object color is used for this object.

OpenMaya.MFnDagNode.useObjectColor

static

 If True then the node will be drawn using its 'objectColor', otherwise it will be drawn using Maya's default color. Thismethod is deprecated, use objectColorType instead.

Name:	useObjectColor
Type:	bool
Access:	RW
Description:

OpenMaya.MFnDagNode Class Reference

Class Description

Base Class

Constructors

Public Member Functions

Static Public Attributes

Properties

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Property Documentation
