In this task, you use the Mold Surface Wizard to create a mold boundary.

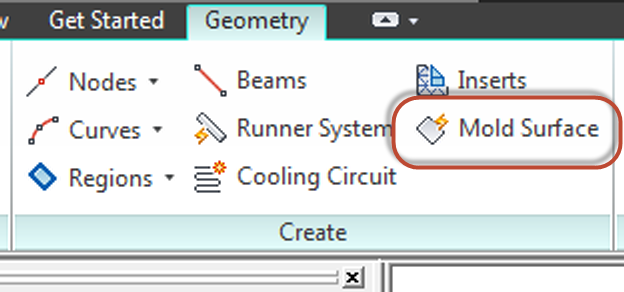

Click Home > Geometry > Create > Mold Surface.

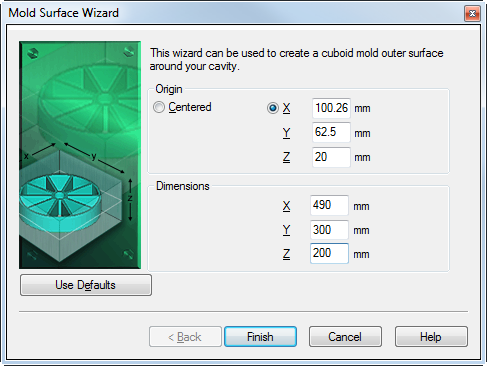

For the Origin, enter:
X = 100.26 mm
Y = 62.5 mm
Z = 20 mm
For the Dimensions, enter:
X = 490 mm.
Y = 300 mm.
Z = 200 mm.
