Set the Analysis Sequence

In this task, you use the set the analysis sequence to Cool(FEM). This sequence must be sent so the mold can be created.

  1. Click Home > Molding Process Setup > Analysis Sequence.

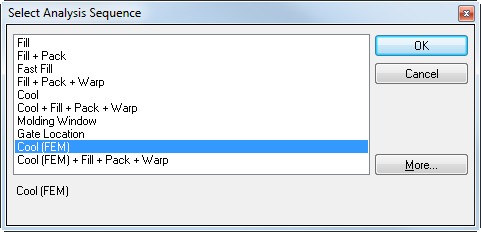

  2. Click Cool(FEM).

    Note: If you do not see an analysis sequence, click More to see all that are available for the molding process.

  3. Click OK.
